New Optical Post and Accessory Kit, 234 Components, Metric Threads

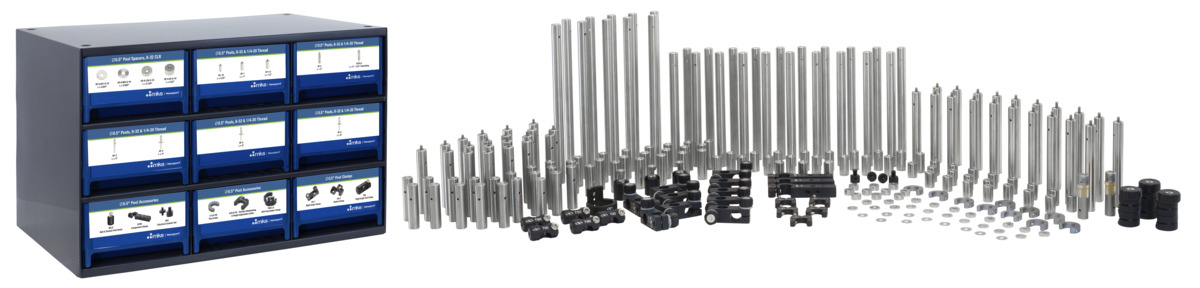

The M-OMK16 optical post and accessory kit provides a cost-effective collection of Newport’s latest 12.7 mm diameter optical posts, mounting accessories and post assembly components with metric threads.  This kit offers a collection of 234 total optical posts, clamps, collars and other accessories allowing a wide range of setup options and easy installation. The kit also comes with a pre-labeled 9 drawer cabinet for easy setup and ordering of additional parts if necessary for your laboratory.

Kit Components

	OMK16	M-OMK16	Description	Quantity
	SP-.75	M-SP-.75	Optical Post, 0.5 in (12.7 mm) Diameter, 0.75 in (19.1 mm) Height	20
	SP-1	M-SP-1	Optical Post, 0.5 in (12.7 mm) Diameter, 1.0 in (25.4 mm) Height	20
	SP-1.5	M-SP-1.5	Optical Post, 0.5 in (12.7 mm) Diameter, 1.5 in (38.1 mm) Height	20
	SP-2	M-SP-2	Optical Post, 0.5 in (12.7 mm) Diameter, 2.0 in (50.8 mm) Height	20
	SP-3	M-SP-3	Optical Post, 0.5 in (12.7 mm) Diameter, 3.0 in (76.2 mm) Height	20
	SP-4	M-SP-4	Optical Post, 0.5 in (12.7 mm) Diameter, 4.0 in (101.6 mm) Height	20
	SP-6	M-SP-6	Optical Post, 0.5 in (12.7 mm) Diameter, 6.0 in (152.4 mm) Height	20
	SP-8	M-SP-8	Optical Post, 0.5 in (12.7 mm) Diameter, 8.0 in (203.2 mm) Height	10
	BTP2.0	M-BTP2.0	Translating Optical Post, 0.5 in (12.7 mm) Diameter, 8/32 & 1/4-20 (M4 & M6)	2
	SPE	M-SPE	Electrical Isolator Set, 0.5 in (12.7 mm) Posts, 8/32 & 1/4-20 (M4 & M6)	2
	CC05	M-CC05	Component Clamp, 0.5 in (12.7 mm) Posts, 8/32 & 1/4-20 (M4 & M6)	3
	AC0.5	AC0.5	Post Collar, Position Maintaining and Height Adjustment	5
	C-0.5	C-0.5	Post Collar, 0.5 in. Diameter Optical Posts	10
	CA-2	CA-2	Optical Post Clamp, Adjustable Angle, 0.5 in. Diameter Optical Posts	3
	CA-1	CA-1	Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts	10
	T90	M-T90	Optical Post End Clamp, Right-Angle, 0.5 in. Post, 1/4-20 (M6) Thread	5
	PMC1.0	PMC1.0	Clamp, 1.0" Post and VPH Post Holder	1
	BSJ1	M-BSJ1	Adjustable Optical Post Head, Ball and Socket, 8-32 (M4) Thread	3
	SP-0.031-S-10	SP-0.031-S-10	Pedestal Spacer Pack, 1/32 in., 0.5 in. Diameter, 8-32 (M4) CLR	10
	SP-0.063-S-10	SP-0.063-S-10	Pedestal Spacer Pack, 1/16 in., 0.5 in. Diameter, 8-32 (M4) CLR	10
	SP-0.125-S-10	SP-0.125-S-10	Pedestal Spacer Pack, 1/8 in., 0.5 in. Diameter, 8-32 (M4) CLR	10
	SP-0.25-S-10	SP-0.25-S-10	Pedestal Spacer Pack, 1/4 in., 0.5 in. Diameter, 8-32 (M4) CLR	10
