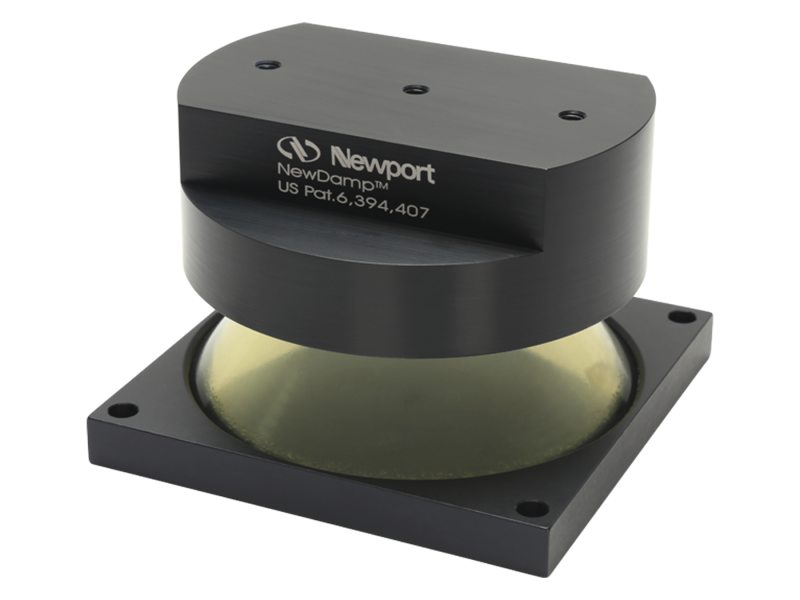

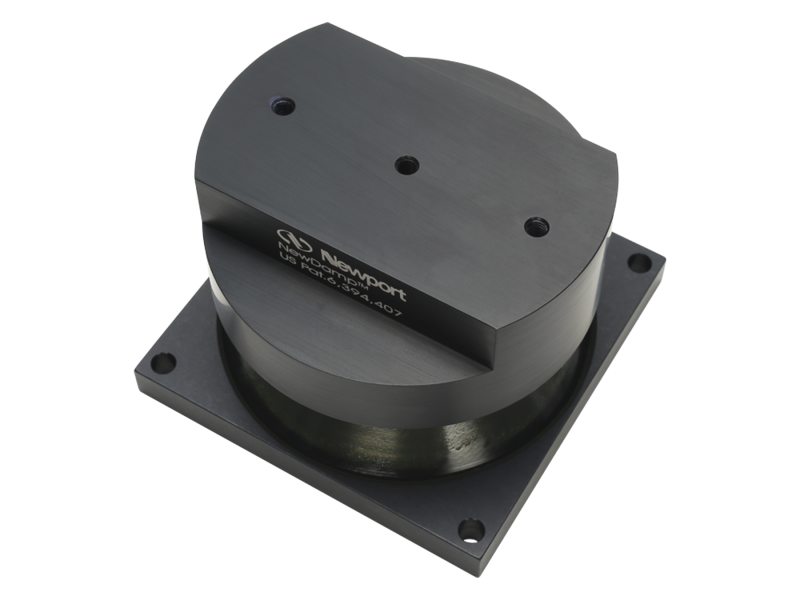

Elastomeric Isolation Mount, NewDamp, 70-300 lb., Microlock Compatible

The M-ND30-A NewDamp Elastomeric Isolator supports 30-135 kg loads and is based on conical elastic elements providing for a stiffer, higher load in the same envelope as the M-ND20-A. The M-ND30-A has a 83 mm height and a 114 x 114 mm base. It provides almost equal isolation in vertical and horizontal directions. By using custom profiled upper supports, these isolators can be easily tuned to particular load/frequency requirements. Metric breadboard microlock compatible.
Ideal Solution for High Throughput Motion or Machinery Applications

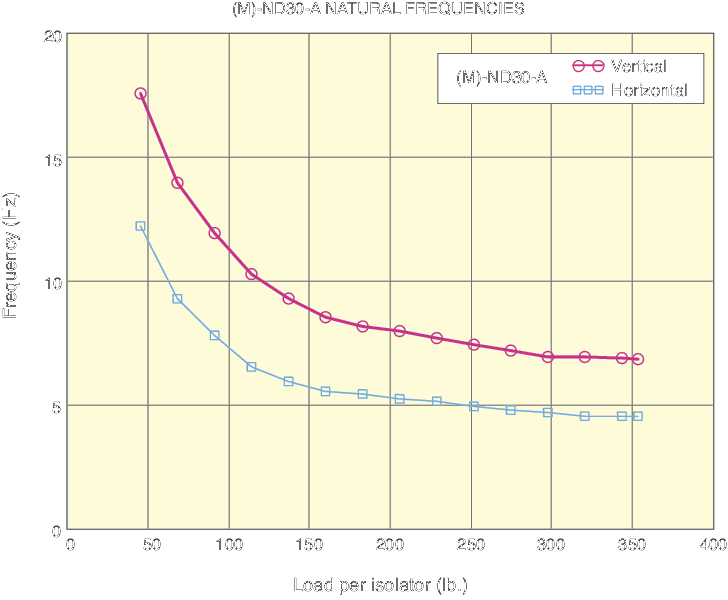

Superior Constant Natural Frequency (CNF) Design
Constant Natural Frequency (CNF) is a complex property that reduces sensitivity to load deviations and offers a high degree of modal decoupling. The natural frequency of most elastomeric mounts lowers with increasing mass or increases with decreasing mass. This means that the vibration isolation characteristics will vary with load. NewDamp elastomeric isolators use special geometry profiled elastomers and mounting fixtures. These isolators accommodate changes in load with changes in stiffness which holds the stiffness to mass ratio constant. As a result, the CNF isolators deliver much better isolation than even softer conventional isolators do.
Faster Settling Times
Super High Damping Material
Resources & Downloads
2D Product Drawings
ND30A DWG-S(111.9 kB, PDF)
Other
M-ND30-A RoHS Certificate(279 kB, PDF)
