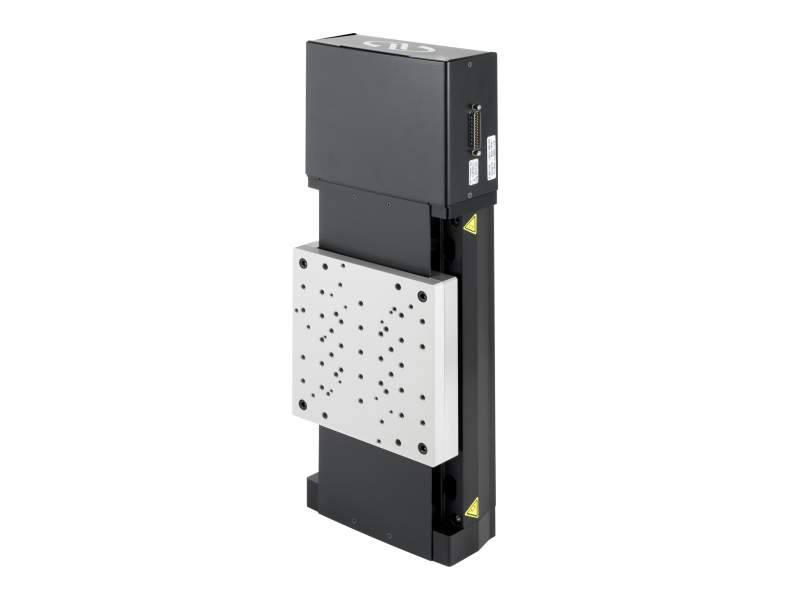

Motorized Vertical Stage, 300 mm Travel, 400 N Load, DC motor, M6

High Performance, Long Travel, Vertical Stages, IMS-V Series

The M-IMS300V Metric Vertical Linear Stages offers 300 mm vertical travel in a cost effective package. They are an ideal solution for both precision industrial and laboratory applications requiring precise vertical motion with 0.3 μm MIM for loads up to 400 N. Features include: four-way equal load ball bearings to provide superior cantilevered loading characteristics, caged recirculating balls to ensure maintenance-free operation without cage migration, self-locking lead screw to ensure superior in-position stability with no change of position at power off, and a direct-read to encoder provide superior accuracy and minimum hysteresis. Ideal for a wide range of precision industrial and research applications.

FEM-Optimized Aluminum Body

Similar to the finite element method (FEM) used to optimize the structural design of IMS series DC and stepper motor linear stages, the optimized aluminum body of the IMS-V is designed for extreme stiffness and minimizes bi-metal bending without compromising weight. This results in a light and stable stage whose rigid body reduces deflection under load.

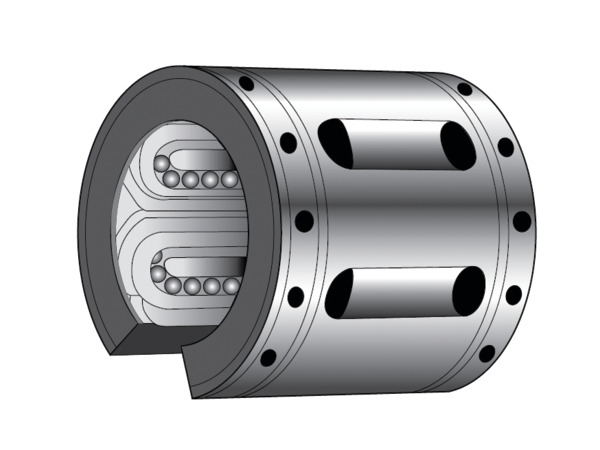

Recirculating Ball Bearings for High Load Capacity

The IMS-V features four-point contact, recirculating ball bearings to provide superior cantilevered loading capacity compared to other vertical stage families. The caged, recirculating ball bearings counteract moment loads and ensure maintenance-free operation.

Direct Position Feedback

Precision position feedback is provided by a linear scale encoder, which contributes to sub-micron MIM and makes the IMS-V less susceptible to hysteresis. The direct read system is impervious to position drift caused by motion-induced heating of the lead screw for improved accuracy and repeatability.

Efficient Drive System

The drive system utilizes a self-locking lead screw with a proprietary, low-friction and wear-resistant nut optimized for carrying high axial loads. Consequently, these features decrease settling time by minimizing oscillation and unwanted motion. Additionally, the self-locking lead screw is not back drivable. This offers the best position stability, and (in contrast to braked ball screw drives) when the stage is within proper loading conditons, its position will not change when power is off.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

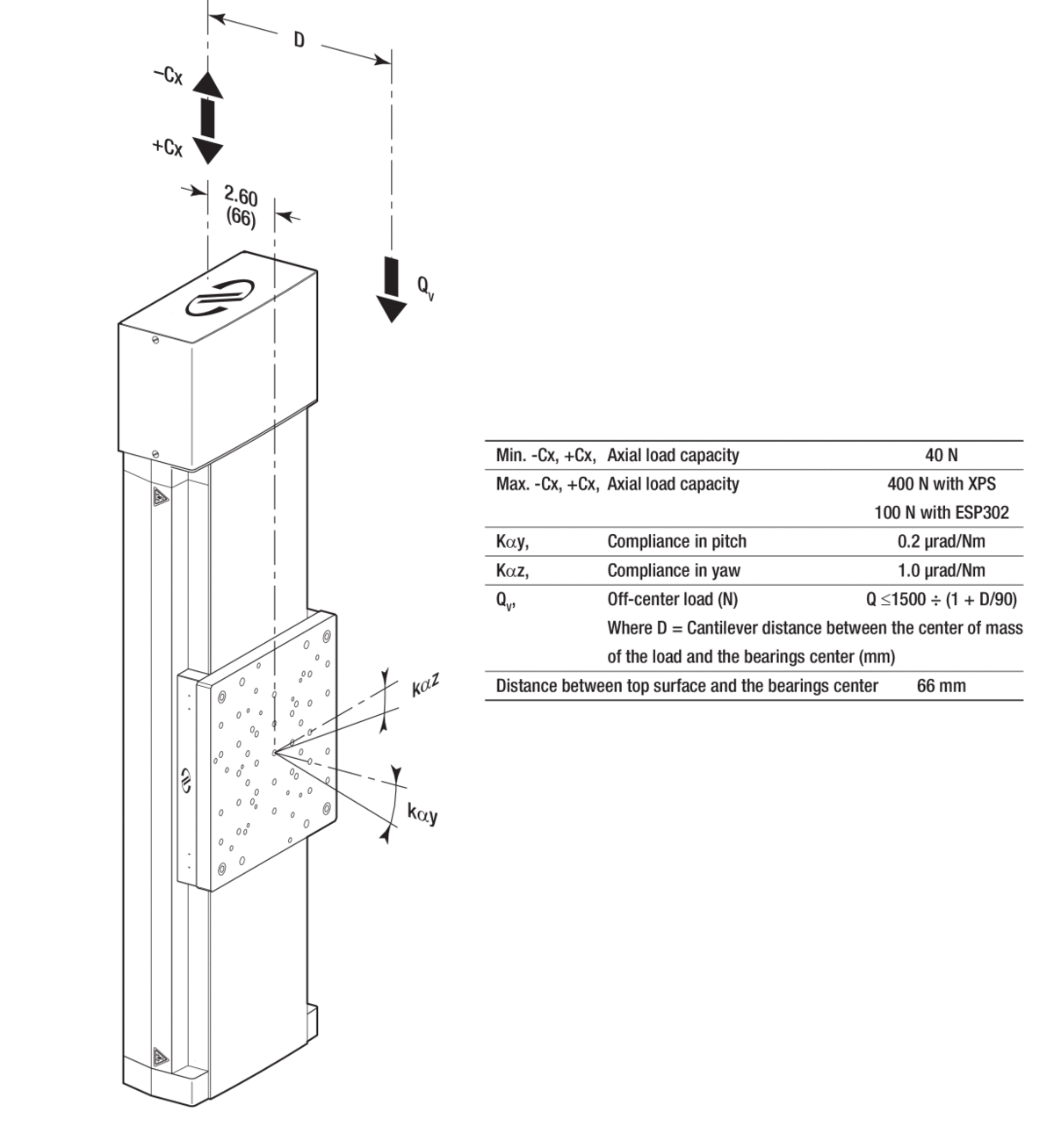

IMS-V Load Diagram

This loading diagram defines compliance in pitch, roll, and yaw. It can also be used to calculate off-center loads when the cantilever distance is known.

Specifications

Technical Specs

Travel Range
300 mm
Minimum Incremental Motion
0.30 µm
Maximum Speed
20 mm/s
Centered Load Capacity ⁰
400 N
Accuracy, Typical
±3.5 µm
Accuracy, Guaranteed
±5.0 µm
Bi-directional Repeatability, Typical
±0.20 µm
Bi-directional Repeatability, Guaranteed
±0.50 µm
Uni-directional Repeatability, Typical
±0.12 µm
Uni-directional Repeatability, Guaranteed
±0.25 µm
Drive Screw Pitch
3 mm
Reduction Gear
1:3.75 belt reduction between motor and screw
Encoder Resolution
0.1 µm
Limit Switches
Optical
Origin
Optical, close to lower limit

Origin Repeatability
±0.1 µm
Connectors
DB25 Male
Pitch, Typical
±35 µrad
Pitch, Guaranteed
±125 µrad
Compliance in Pitch
1 µrad/Nm
Yaw, Typical
±20 µrad
Yaw, Guaranteed
±75 µrad
Compliance in Yaw
1 µrad/Nm
Cable Length
5 m
Thread Type
M6
Weight
17 kg
MTBF
20,000 h (300 N load, 10% duty cycle)
Compliance
RoHS 3, CE

Notes:

Limited to 100 N, when used with EQ180 bracket. Contact us for alternative bracket options

Travel Range
300 mm
Minimum Incremental Motion
0.30 µm
Maximum Speed
20 mm/s
Centered Load Capacity ⁰
400 N
Accuracy, Typical
±3.5 µm
Accuracy, Guaranteed
±5.0 µm
Bi-directional Repeatability, Typical
±0.20 µm
Bi-directional Repeatability, Guaranteed
±0.50 µm
Uni-directional Repeatability, Typical
±0.12 µm
Uni-directional Repeatability, Guaranteed
±0.25 µm
Drive Screw Pitch
3 mm
Reduction Gear
1:3.75 belt reduction between motor and screw
Encoder Resolution
0.1 µm
Limit Switches
Optical
Origin
Optical, close to lower limit

Origin Repeatability
±0.1 µm
Connectors
DB25 Male
Pitch, Typical
±35 µrad
Pitch, Guaranteed
±125 µrad
Compliance in Pitch
1 µrad/Nm
Yaw, Typical
±20 µrad
Yaw, Guaranteed
±75 µrad
Compliance in Yaw
1 µrad/Nm
Cable Length
5 m
Thread Type
M6
Weight
17 kg
MTBF
20,000 h (300 N load, 10% duty cycle)
Compliance
RoHS 3, CE

Notes:

Limited to 100 N, when used with EQ180 bracket. Contact us for alternative bracket options
