Modulator Bias Control Board, 5 Mode

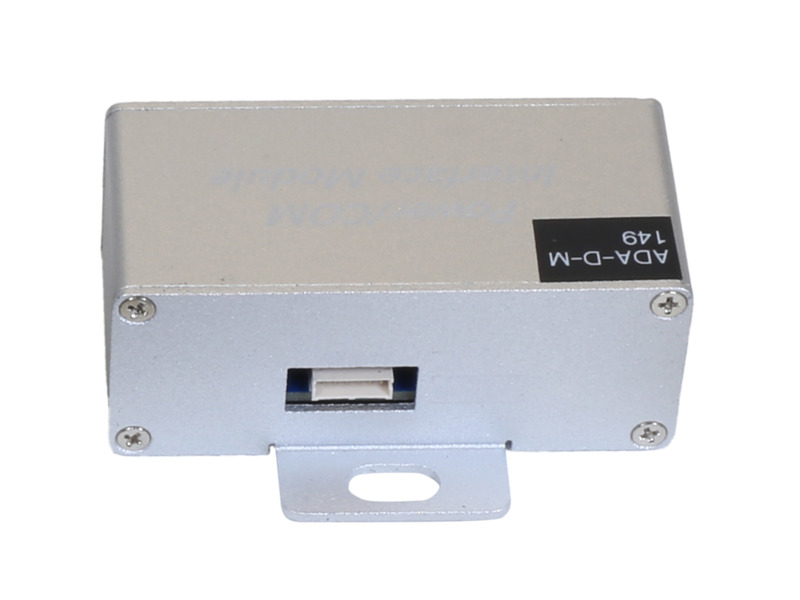

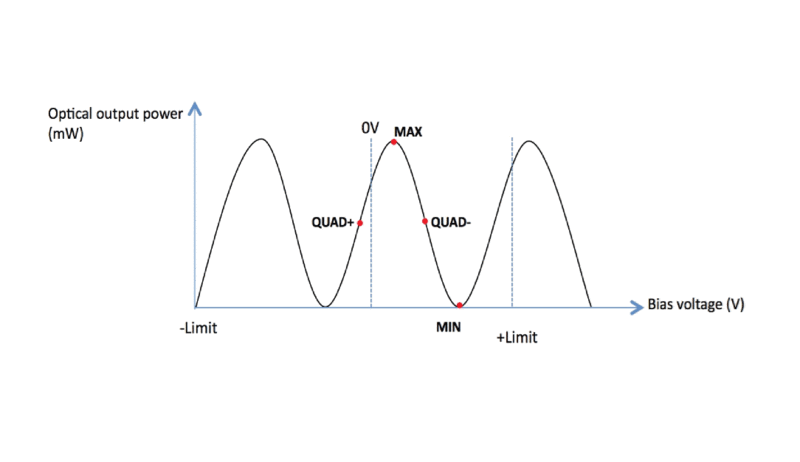

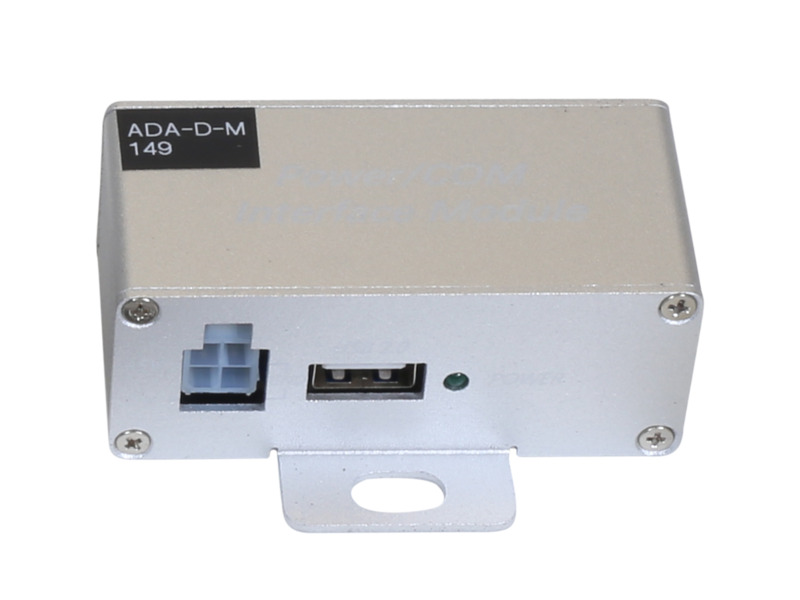

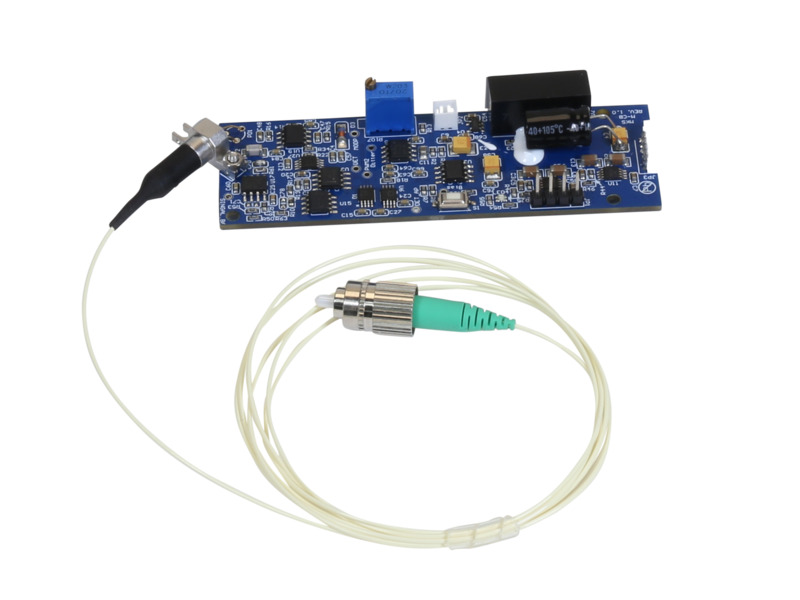

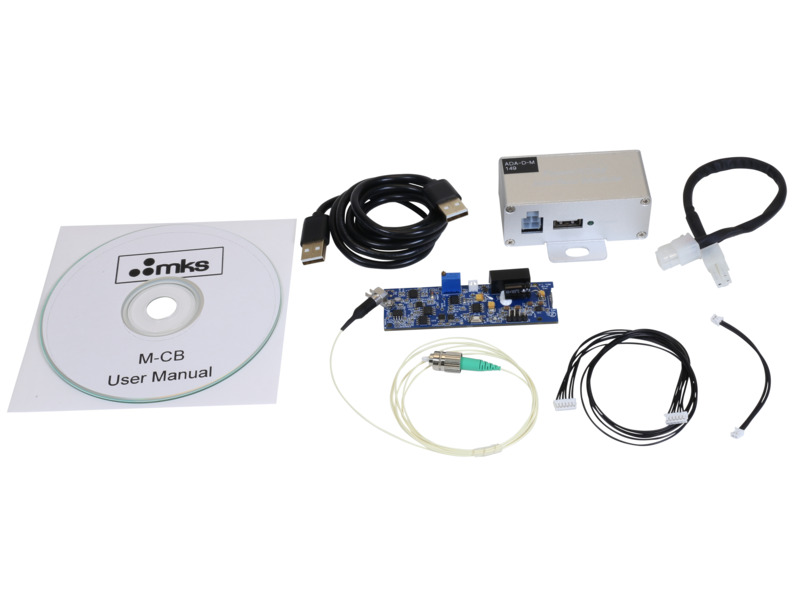

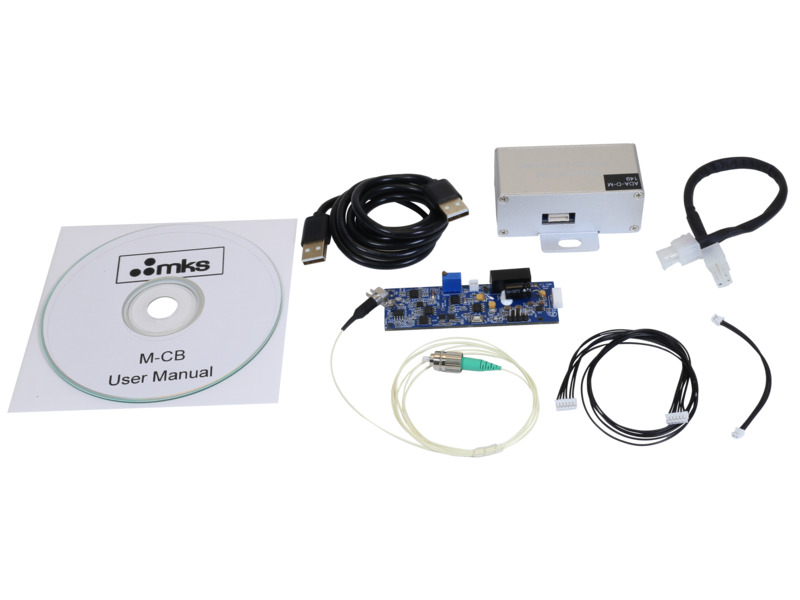

The M-CB is a compact bias control board designed to maintain the linear operating point of optical intensity modulators. Featuring a compact miniature design for OEM integration, the M-CB allows for a stable Q+, Q-, Min, Max, and Manual operation over long periods of time. With a single 5 VDC power and RS485 multi-addressing control and monitor interface, the M-CB unit is the ideal choice for industrial and OEM applications when paired with any of Newport’s optical modulators.

Compatible with Fiber Modulators

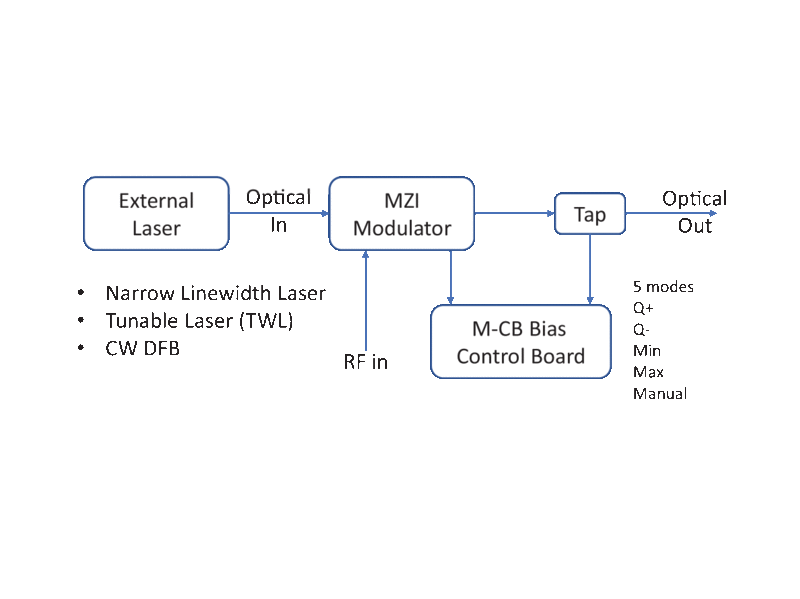

MKS offers two compatible products to the fiber-optic modulators. The F-AMP-SM is a general purpose EDFA (erbium doped fiber amplifier) pre-amplifier module and can be used together with the fiber-optic amplifiers to compensate the insertion loss. The M-CB bias control board is specifically designed to maintain the linear operating point of the fiber-optic intensity modulators.

M-CB Bias Control

Specifications

Technical Specs

Type
Modulator Bias Control Board
Operating Frequency
1 kHz Dithering
Maximum Optical Power
-20 to -10 dBm Feedback

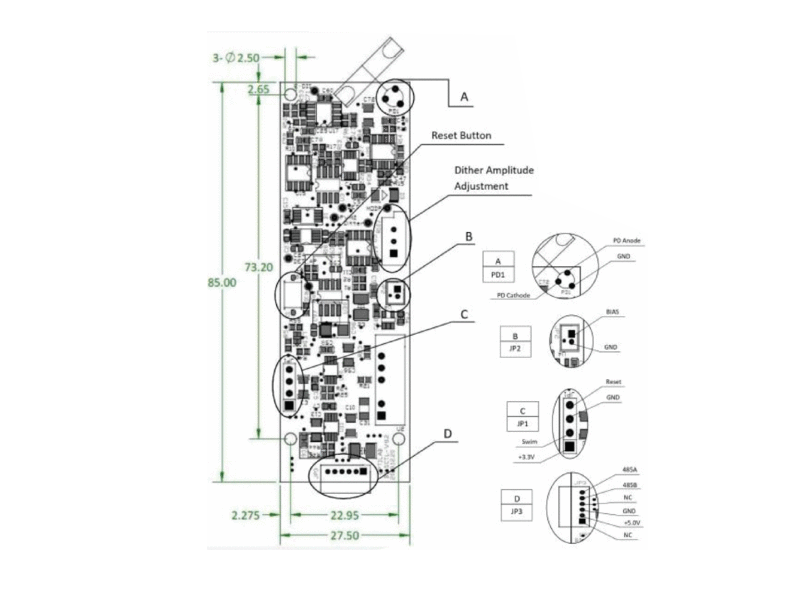

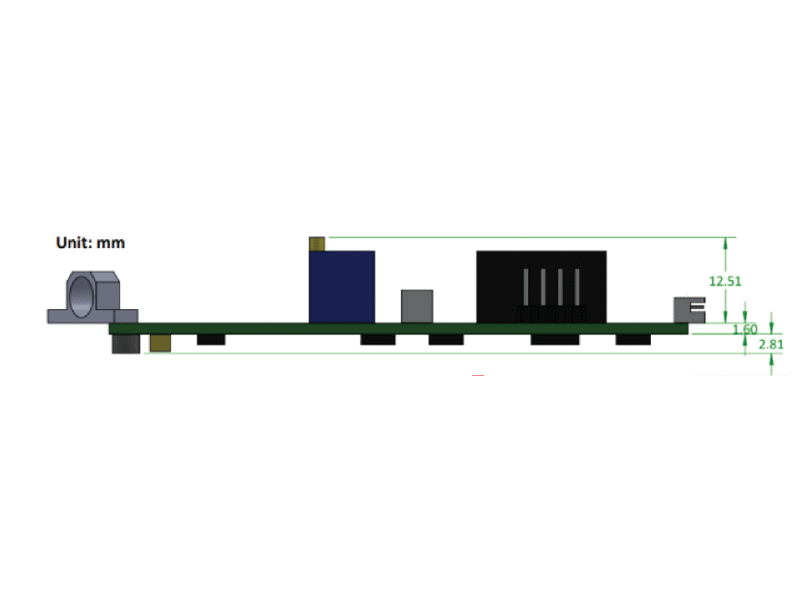

Dimensions
85 mm x 27.5 mm x 17 mm
Power Requirements
+5 VDC

Operating Temperature
-10 to +60 °C
Storage Temperature
-60 to +90 °C

Type
Modulator Bias Control Board
Operating Frequency
1 kHz Dithering
Maximum Optical Power
-20 to -10 dBm Feedback
Dimensions
85 mm x 27.5 mm x 17 mm
Power Requirements
+5 VDC

Operating Temperature
-10 to +60 °C
Storage Temperature
-60 to +90 °C

Resources & Downloads

Literature

DS-062303 M-CB Datasheet(2 MB, PDF)

Manuals

M-CB User Manual Rev 1.0(867.9 kB, PDF)
