Sample Pack, BPH Post Holders, Metric Posts, Extension Bases & Collars
Sample Pack, BPH Post Holders, Metric Posts, Extension Bases & Collars
Model: M-BPH-PK
In Stock
Product Series Overview
Non-Bridging Slotted-Base Optical Post HoldersThe M-BPH-PK is a cost-saving family pack of the BPH Post Holders. It includes one each of the four BPH post holders: 25.4, 50.8, 76.2, and 101.6 mm tall versions. The pack also includes 12.7 mm M4/M6 threaded posts for each post holder as well as five BPH-XB extension bases and five each BPH-C indexing collars.
Resources & Downloads
2D Product Drawings
BPH Drawing(134.7 kB, PDF)
Other
M-BPH-PK RoHS Certificate(276.8 kB, PDF) M-BPH-PK_RoHS2021.pdf(677.3 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SK-25ABlack Oxide Screw Kit, 1/4-20, Assortment, Qty 261 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-VPH-1.5Optical Post Holder, No Slip, 38.1 mm Height, 12.7 mm Posts, M6 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

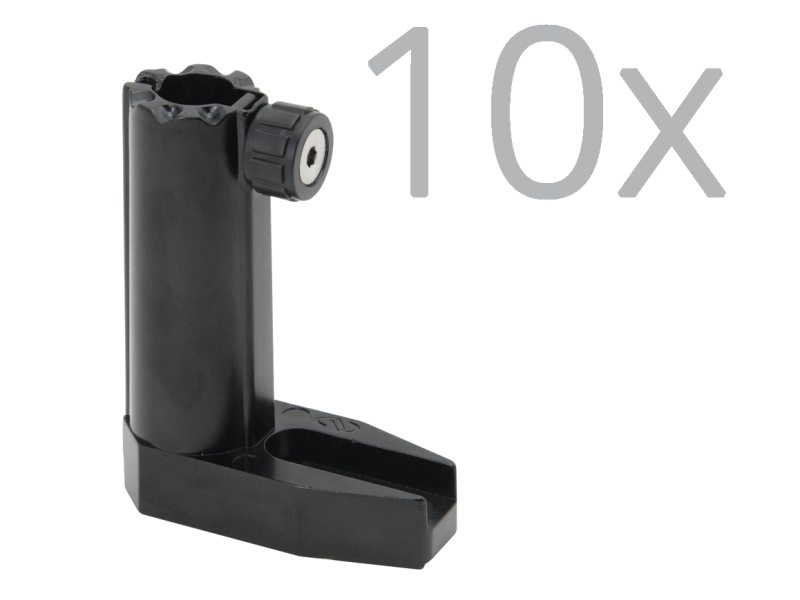

 | BPH-3PKOptical Post Holder Pack, Slotted-Base, 3 in. Height, 0.5 in. Posts, Qty 10 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

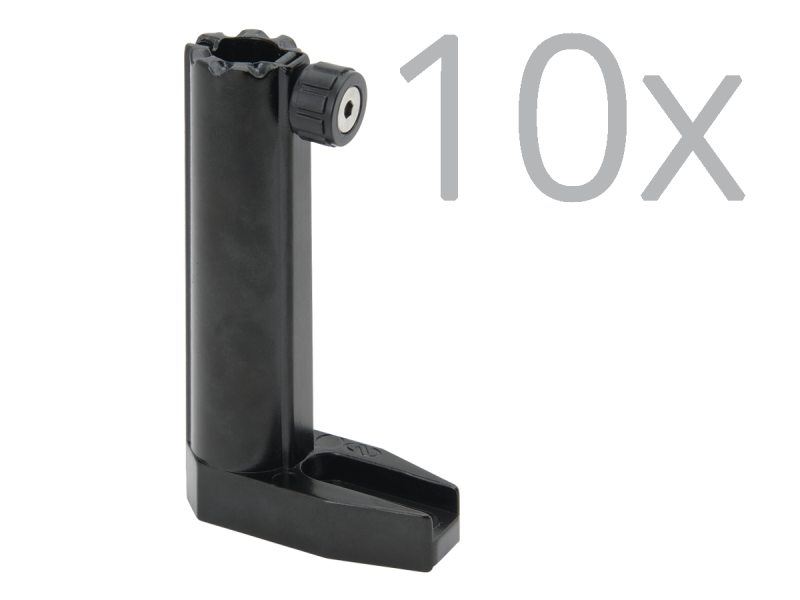

 | BPH-4PKOptical Post Holder Pack, Slotted-Base, 4 in. Height, 0.5 in. Posts, Qty 10 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
