Slotted Base, Magnetic Swivel, M4 and M6 Thread
Slotted Base, Magnetic Swivel, M4 and M6 Thread
Model: M-APHB-T
Product Series Overview

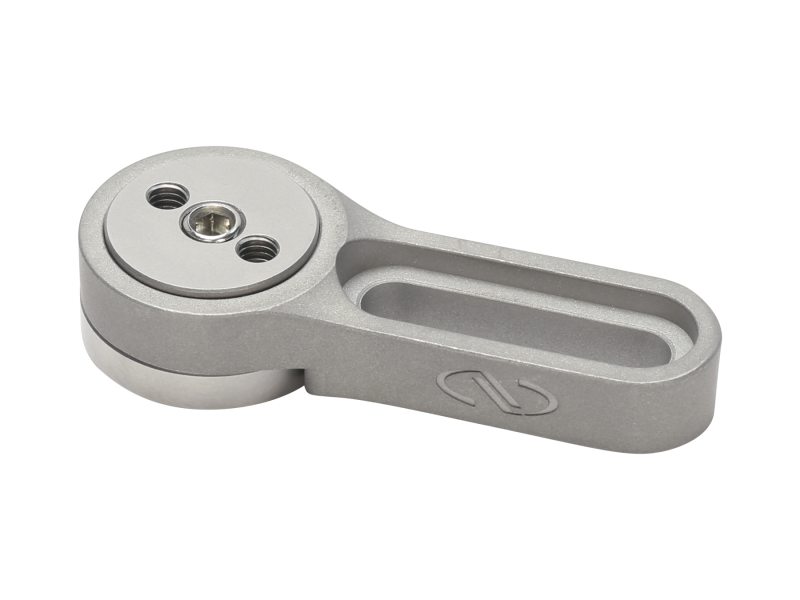

Stainless Steel Swivel Slotted BasesThe M-APHB-T swivel base utilizes a magnet for initial positioning and a swivel clamp for aligning with optical table holes for final lock down. The top is threaded with both M4 and M6 holes for mounting a post or mirror mount directly to the top of the swivel base.
Resources & Downloads
2D Product Drawings
M-APHB-T Dimensions(171.9 kB, PDF)
Other
M-APHB-T RoHS2-2021 Certificate(676.9 kB, PDF)
