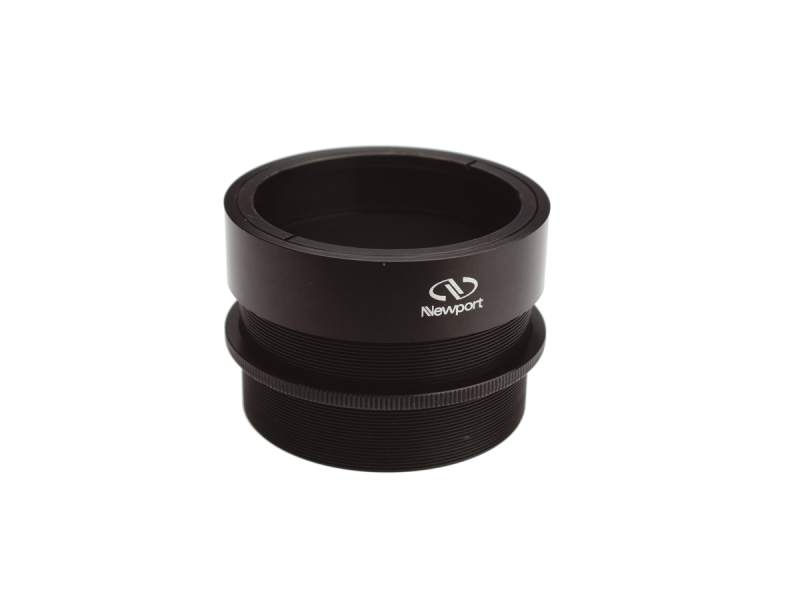

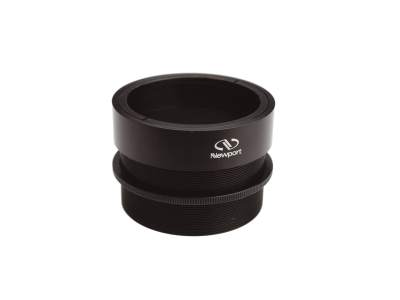

Focusing Lens Tube, 2 inch diameter lenses
Focusing Lens Tube, 2 inch diameter lenses
Model: LT20-F
Product Series Overview
Focusing and Extension Lens TubesThe LT20-F Focusing Tube allows axial translation of one group of lenses relative to another. The focusing tube is simply a lens tube with a longer external thread and a locking nut. Provided in 2 inch diameter, the focusing tube screws into the internal threads of a standard lens tube and is locked in place with the lock nut. The maximum focusing range is 0.89 inch. A lens retaining ring is also included with each focusing tube.
Resources & Downloads
Other
LT20-F RoHS Certificate(278.8 kB, PDF) LT20-F_RoHS2021.pdf(682.9 kB, PDF)
2D Product Drawings
LT-XX-F DWG.pdf(187.2 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LT20-CEnd Cover, Lens Tube, 2 inch LT Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LT20-LNLens Tube Coupler, 2.0 in. Lens Tubes, 2.035-40 Internal Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LT10-FFocusing Lens Tube, 1 inch diameter lenses | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LT20-LXLens Tube Coupler, 2.0 in. Lens Tubes, 2.035-40 External Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

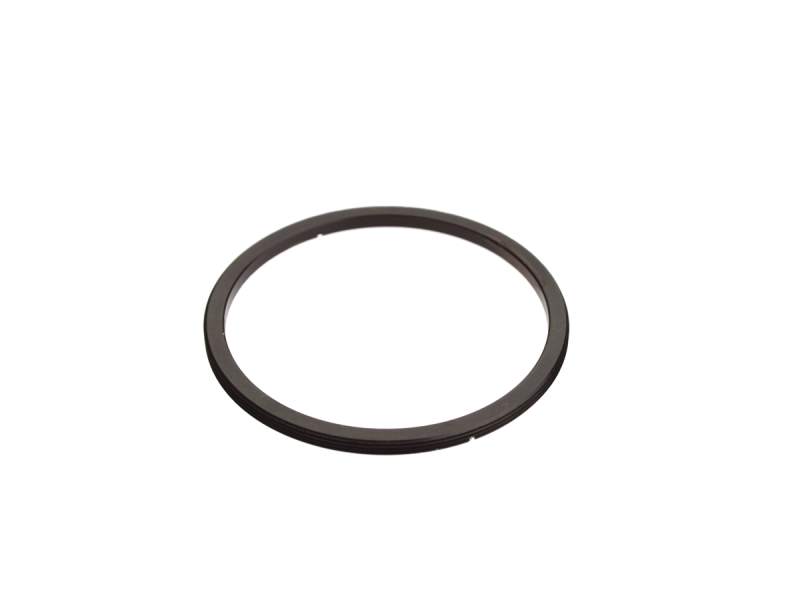

 | LT20-RRRetaining Ring, 47.5 mm ID, 2.035-40 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
