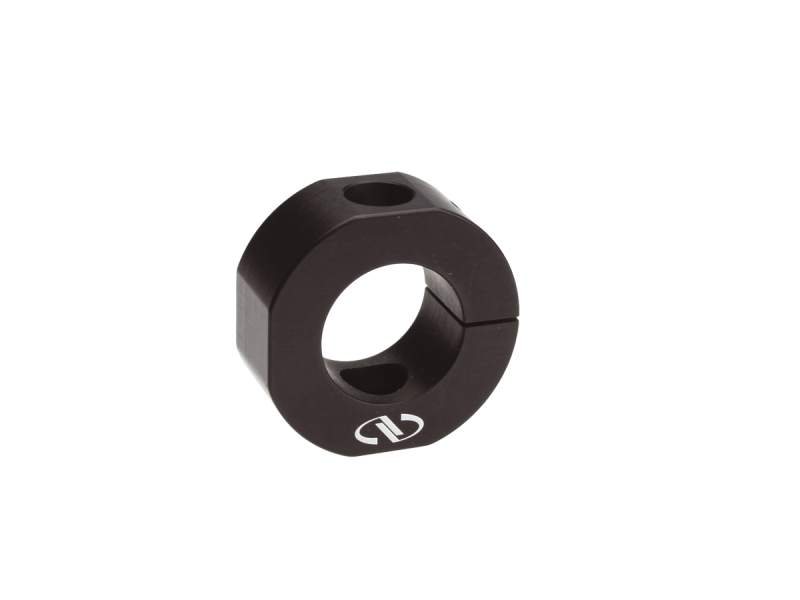

Post Mounting Ring, 1/2 inch LT Series Lens Tubes
Post Mounting Ring, 1/2 inch LT Series Lens Tubes
Model: LT05-PR
Product Series Overview
Lens Tube AccessoriesThe LT05-PR Post Mounting Ring allows 1/2 inch LT Series lens tubes to be post mounted. It attaches to posts via a counterbored through hole and securely holds the lens tube in place with a circumferential clamp mechanism. This style of clamping more evenly distributes the holding force and minimizes tube deformation and damage.
Resources & Downloads
2D Product Drawings
LTXX-PR_DWG(84.2 kB, PDF)
Other
LT05-PR RoHS Certificate(279 kB, PDF) LT05-PR_RoHS2021.pdf(682.3 kB, PDF)
