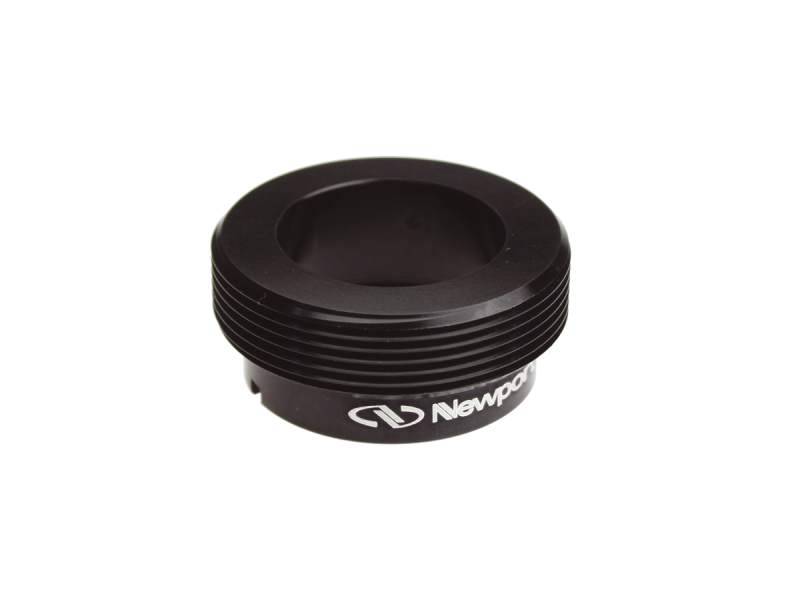

Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.438-20 Thread

Lens Tube Adapters

The LT-10-BS1 Thread Adaptor is used to convert 1.438-20 threads to 1.035-40. This allows a CH-1 Beamsplitter Holder or LP-1A Lens Positioner to be attached to a 1 inch LT series lens tube.

Specifications

Technical Specs

Type
Lens Mount Adapter
Use
1.0 in. Lens Tubes
Thread Type
1.035-40 and 1.438-20

Type
Lens Mount Adapter
Use
1.0 in. Lens Tubes
Thread Type
1.035-40 and 1.438-20

Resources & Downloads

2D Product Drawings

LT-10-BS1_DWG(91 kB, PDF)

Other

LT-10-BS1_RoHS2021.pdf(682.5 kB, PDF)
