Laser Diode Module, 635 nm, 3 mW, CW, Circular Beam, Micro Lens

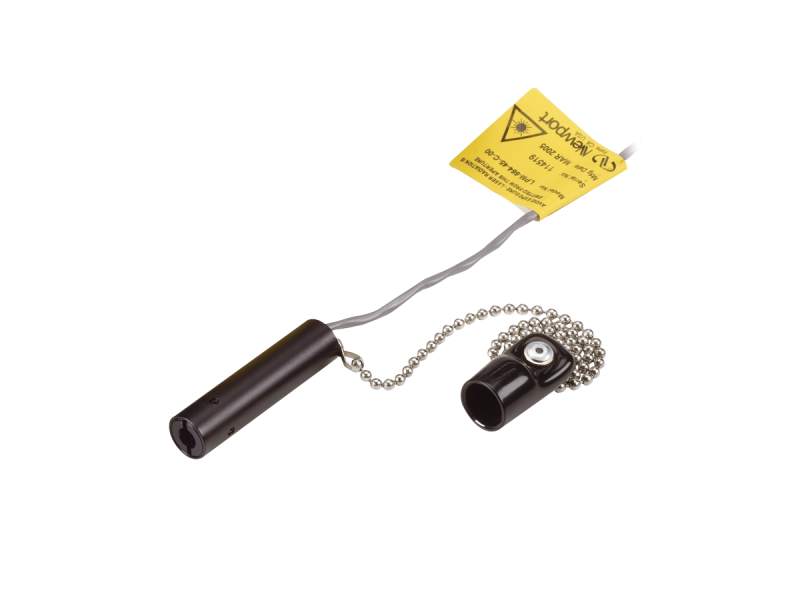

The LPM635-03C Laser Diode Module is an economical choice. It includes the diode and collimating optics in a single case. This Fabry-Perot (FP) 635 nm Laser Diode Module with 3 mW CW circular beam (using a microlens) comes in a self contained module. It requires a 5 VDC external power supply. An LPMS-5-110 or LPMS-5-220 Series Power Supply (not included) must be used with this LD module to meet CDRH requirements by providing an interlock input, key enable switch, delayed start-up, and laser active indicator. Warranty is not applicable when a custom power supply is used to drive the module.

Economical LPM Series

For applications that only need laser diode modules with simple, more economical fixed output power supplies, the LPM series is suitable. The LPM modules include the diode and collimating optics in a single case.

Protective rubber cap included only with Class 3B lasers and above.

Elliptical or Circular Beam Output

All LPM and LQC diode lasers are available either in elliptical (E versions) or circular (C versions) output beam shape. Circular beams are generated using a micro lens built in the diode laser and exhibit better quality than elliptical versions. The wavelengths indicated are typical values only, due to the nature of FP lasers.

LPMS Power Supplies Recommended for Use with Laser Diode Modules

Newport's LPMS Series Power Supplies (sold separately) are more than just power supplies. This is a key instrument that will make the LPM and LQC laser diode modules CDRH-compliant. It provides an interlock input, key enable switch, delayed start-up, and laser active indicator. The laser modules in the wavelength range of 375-473 nm require an 8/12 VDC power source. Those in the range of 635-2330 nm require a 5 VDC power source. (Note: Warranty is not applicable when a custom power supply is used to drive the laser diode module.)

Power Supplies Ordered Separately

Applications

Spectroscopy
Interferometry
Machine vision
Flow cytometry
Tissue fluorescence

Specifications

Technical Specs

Type
CW Laser Diode
Center Wavelength
635 nm
Center Wavelength Tolerance
±10 nm
Output Power
3 mW
Power Stability
<5% (8 hr.)
Beam Diameter (1/e<sup>2</sup>)
1.47 x 1.47 mm
Beam Divergence Full Angle
<1.2 mrad
Maximum Operating Current
120 mA

Size
Ø12.7 x 50.8 mm
Noise
<0.5%
Applications
Spectroscopy, Interferometry, Machine Vision, Marking, Flow Cytometry, Tissue Fluorescence
Linewidth
2 nm
Power Requirements
3.5 to 5 VDC
Operating Temperature
0 to 40°C

Type
CW Laser Diode
Center Wavelength
635 nm
Center Wavelength Tolerance
±10 nm
Output Power
3 mW
Power Stability
<5% (8 hr.)
Beam Diameter (1/e<sup>2</sup>)
1.47 x 1.47 mm
Beam Divergence Full Angle
<1.2 mrad
Maximum Operating Current
120 mA

Size
Ø12.7 x 50.8 mm
Noise
<0.5%
Applications
Spectroscopy, Interferometry, Machine Vision, Marking, Flow Cytometry, Tissue Fluorescence
Linewidth
2 nm
Power Requirements
3.5 to 5 VDC
Operating Temperature
0 to 40°C

Resources & Downloads

Manuals

LPM Laser Diode Modules User's Manual(1.5 MB, PDF)
