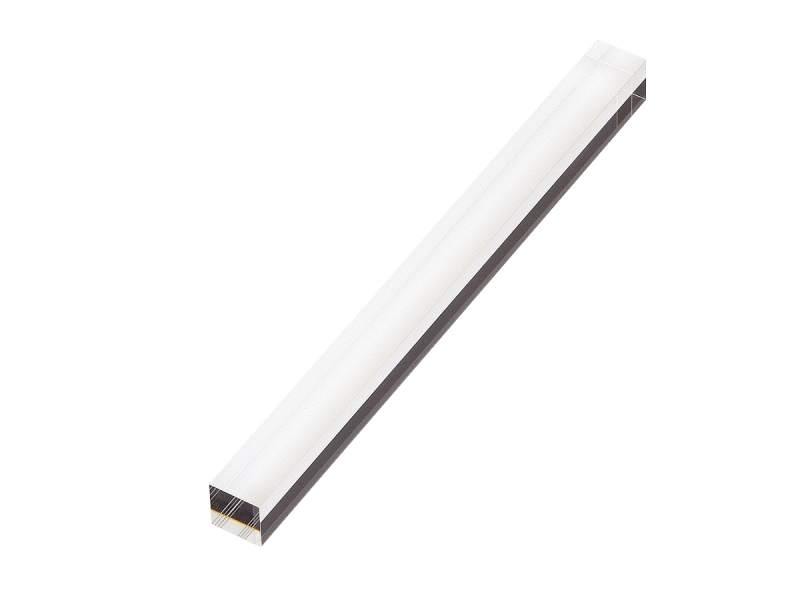

Light Pipe Homogenizer, 8 x 8 x 100 mm
Light Pipe Homogenizer, 8 x 8 x 100 mm
Model: LPH-PIP-8
Product Series Overview
Light Pipe HomogenizerThe LPH-PIP-8 Light Pipe Homogenizer provides highly uniform or homogenized illumination. Through the process of total internal reflection, this 8 x 8 x 100 mm light pipe can transform the output of a very non-uniform light source into highly uniform or homogenized illumination. For maximum homogenization efficiency, our light pipes feature square cross sections and very sharp edges with minimal bevel. Our optional LPH-COL-series collet holder makes contact with the light pipe only at the edges and completely covers the sharp edges for safety. When installed in our clamp mount, it can be easily rotated. Light pipes can be used as homogenizers in illumination systems for microscopes, inspection systems and video metrology systems.
Resources & Downloads
Other
LPH-PIP-8 RoHS Certificate(696.4 kB, PDF)
2D Product Drawings
LPH-PIP.pdf(419.5 kB, PDF)
