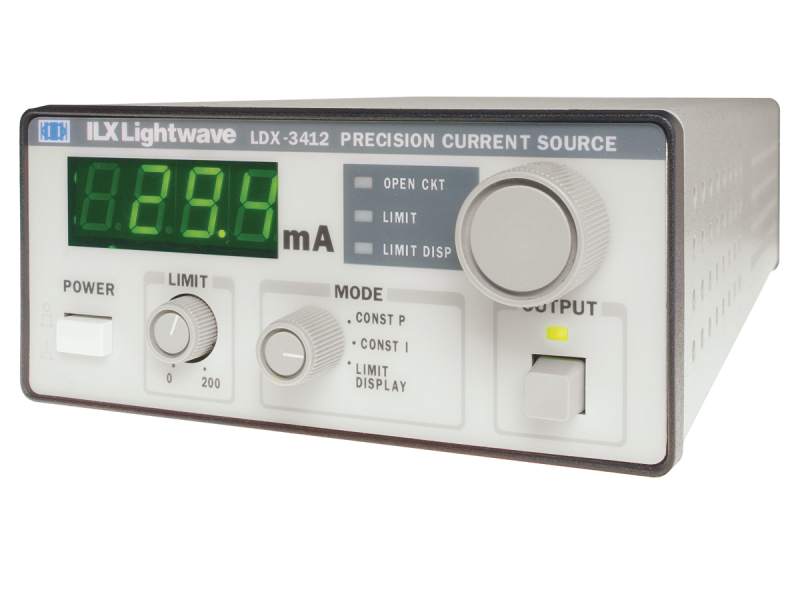

LDX-3412-120V Laser Diode Driver

The LDX-3412 Precision Laser Diode Driver provides a low cost solution for general purpose current control of laser diodes and LEDs. This instrument delivers a stable, low-noise output in both constant current and constant power operating modes and offers the ILX Lightwave^® proven protection and safety features to protect your laser diode or LED. A greater level of protection is provided with the instrument's unique voltage source/constant current output stage design.

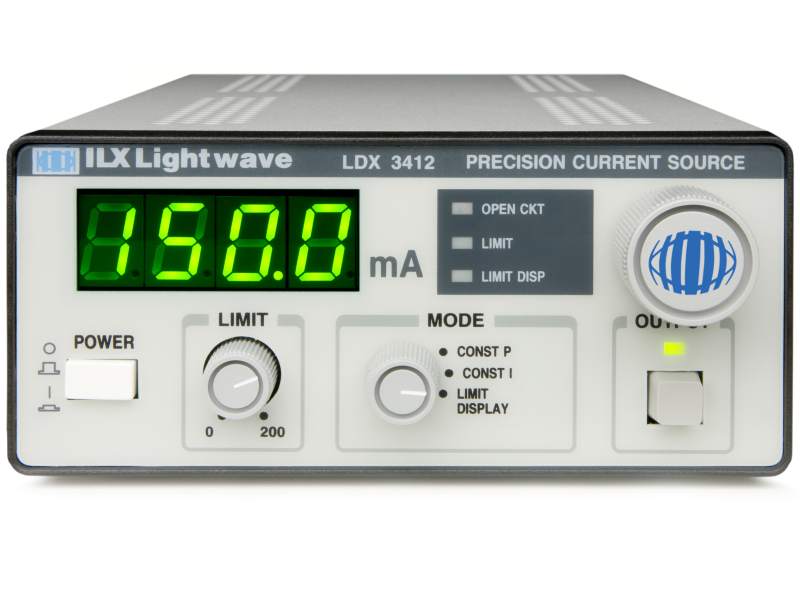

The LDX-3412 Laser Diode Driver is easy to operate with an intuitive front panel and a highly visible LED display. For many applications, the LDX-3412 offers the right features at the right price.

We offer a wide variety of precision laser diode mounts with plug and play compatibility with our laser diode instrumentation.

Specifications

Technical Specs

Laser Current

0.2 A
Laser Drive Requirement

Less Than 1 A
Laser Compliance Voltage

6 V
Temperature Coefficient

<100 ppm FS/°C
Computer Interfaces

None
Power Requirements

120 VAC
Laser Current Resolution

100 µA
Laser Current Accuracy

±0.2 mA

Laser Output Noise/Ripple Low Bandwidth

2 µA
Current Output 1 h Stability

<50 ppm
Photodiode Current Range

20-2000 µA
Photodiode Reverse Bias

0-5 V
Connector Type

DB9
Display Type

3.5 digit Green LED

Laser Current

0.2 A
Laser Drive Requirement

Less Than 1 A
Laser Compliance Voltage

6 V
Temperature Coefficient

<100 ppm FS/°C
Computer Interfaces

None
Power Requirements

120 VAC
Laser Current Resolution

100 µA
Laser Current Accuracy

±0.2 mA

Laser Output Noise/Ripple Low Bandwidth

2 µA
Current Output 1 h Stability

<50 ppm
Photodiode Current Range

20-2000 µA
Photodiode Reverse Bias

0-5 V
Connector Type

DB9
Display Type

3.5 digit Green LED
