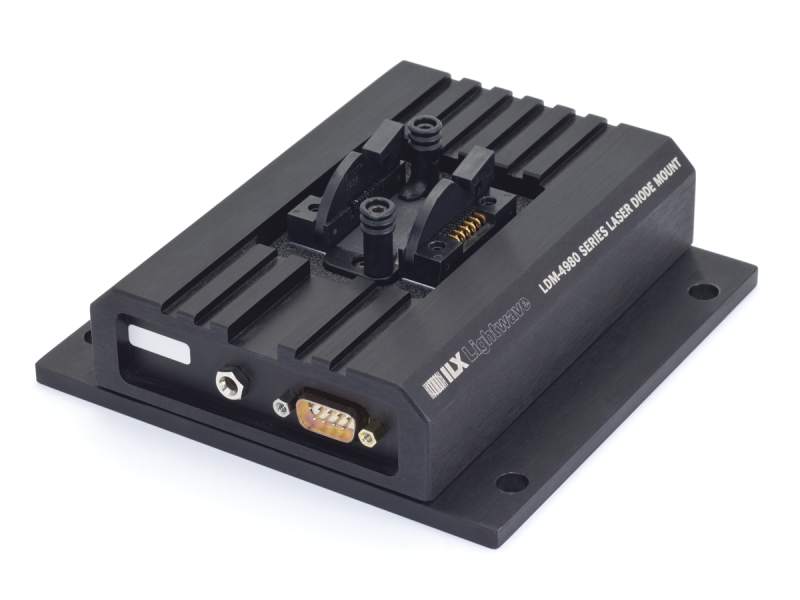

Laser Diode Mount, 14-pin Butterfly, Bias-T, Temp Controlled

Model: LDM-4984T-BTB

$1,465

6 Weeks

Compare

Add to List

Product Series Overview

14-pin Butterfly Laser Diode Mounts with Modulation Port

The LDM-4984T-BTB is designed for typical telecommunication butterfly laser diode packages and includes an 800MHz Bias-T and a separate case temperature control for applications requiring tight temperature stability, both integrated inside the standard LDM-4984 mount. An SMA connector on the LDM-4984T-BTB connects to the high frequency end of the Bias-T and requires the laser anode to be on pin 10 and laser cathode on pin 11. Zero insertion force (ZIF) sockets and spring-loaded clamps facilitate ease of mounting. The LDM-4984T-BTB features the ILX Lightwave^® standard 9-pin D-sub input connectors with configurable pin designations to accommodate virtually any laser diode pin configuration.

Specifications

Technical Specs

Package Type

14-pin Butterfly
Laser Current

2 A
TE Cooler

Yes
TE Current Range

-6.0 to +6.0 A
TE Voltage Range

-4.2 to +4.2 V
Temperature Range

-5 to 85°C

Temperature Sensor

10 kΩ NTC Thermistor
Laser Driver Connector Type

Female 9-pin DSUB
TEC Controller Connector Type

Male 9-pin DSUB (TEC) Male 9-pin DSUB (Case TEC)
Dimensions

39.4 x 140 x 140 mm

Package Type

14-pin Butterfly
Laser Current

2 A
TE Cooler

Yes
TE Current Range

-6.0 to +6.0 A
TE Voltage Range

-4.2 to +4.2 V
Temperature Range

-5 to 85°C

Temperature Sensor

10 kΩ NTC Thermistor
Laser Driver Connector Type

Female 9-pin DSUB
TEC Controller Connector Type

Male 9-pin DSUB (TEC) Male 9-pin DSUB (Case TEC)
Dimensions

39.4 x 140 x 140 mm

Resources & Downloads

Application Notes

Choosing the Right Laser Diode Mount for Your Application - AN06 (610.4 kB, PDF)

Technical Notes

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CC505S Control Cable, TEC Controller to Mount, 5 Amp, DB15 Male to DB9 Female	UNIVERSAL		In Stock	$105
		CC305S Cable, Laser Driver to Mount, 5 Amp, DB9 Male to DB9 Male	UNIVERSAL		In Stock	$120

Similar

Description	Compatibility	Avail.	Price
LDM-4984 Laser Diode Mount, 14-pin Butterfly	UNIVERSAL	6 Weeks	$735
LDM-4984T Laser Diode Mount, 14-pin Butterfly, Temp Controlled	UNIVERSAL	In Stock	$970
LDM-4984-BTB Laser Diode Mount, 14-pin Butterfly, Bias-T	UNIVERSAL	6 Weeks	$1,050
LDM-4984RF Laser Diode Mount, 14-pin Butterfly, RF Internal Modulation	UNIVERSAL	6 Weeks	$1,990
LDM-4984TRF Laser Diode Mount, 14-pin Butterfly, RF Internal Modulation, Temp Controlled	UNIVERSAL	6 Weeks	$2,410

Compatible

Description	Compatibility	Avail.	Price
LDX-3220-120V Laser Diode Driver, Precision, 500mA, 10V, GPIB, 120 VAC	UNIVERSAL	In Stock	$3,460
LDC-3726 Laser Diode Controller, 100/200/500mA, 10V, 32W TEC, USB & GPIB	UNIVERSAL	Contact Us	$4,825
LDT-5416 Temperature Controller, Thermoelectric, ±4A, ±4V, 16W, Low Power	UNIVERSAL	In Stock	$1,885
