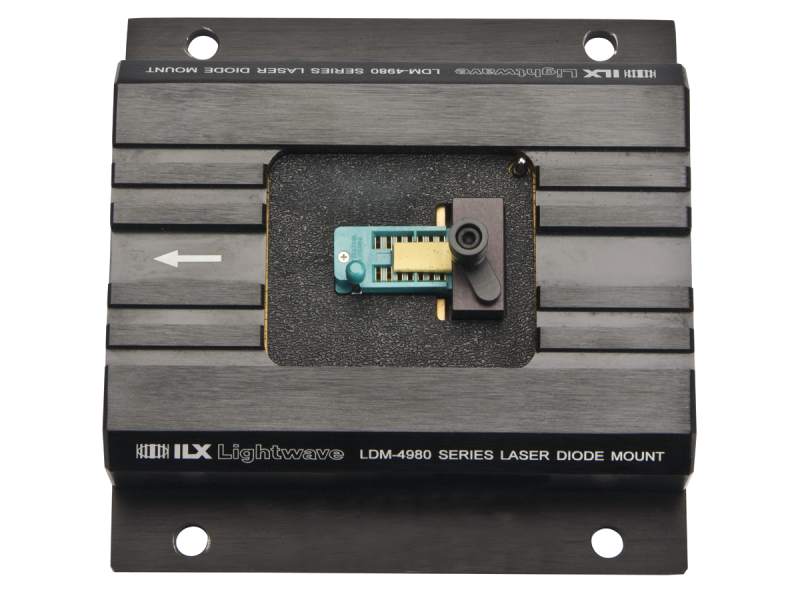

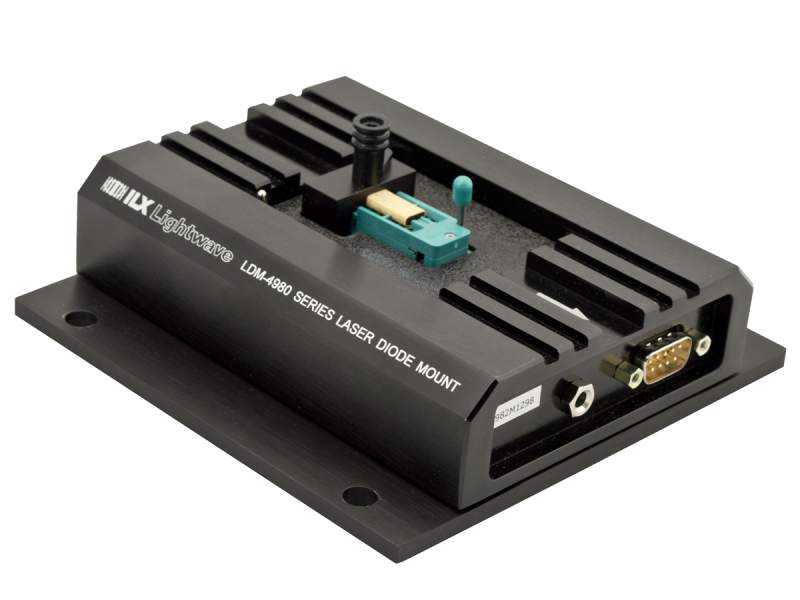

Laser Diode Mount, 8-pin Mini-DIL, Temp Controlled (RoHS and / or CE Pending)
The LDM-4982M is designed for typical telecommunication miniature dual in-line (mini-DIL) laser diode packages includes case temperature control with a temperature range of -5°C to 50°C. Zero insertion force (ZIF) sockets and spring-loaded clamps facilitate ease of mounting. The LDM4982M features the ILX Lightwave® standard 9-pin D-sub input connectors with configurable pin designations to accommodate virtually any laser diode pin configuration.
Resources & Downloads
Application Notes
Choosing the Right Laser Diode Mount for Your Application(610.4 kB, PDF)
Technical Notes
LDM-4982 and 4984 Quick Setup Guide(76.6 kB, PDF) Minimum Temperature Control Range of the LDM-4982M(53.5 kB, PDF) Temperature Stability and Thermal Resistance of the LDM-4982M(126.7 kB, PDF) Temperature Controlled Mini-DIL Mount(114.3 kB, PDF)
Literature
LDM-4980 Telecom Laser Diode Mount Brochure(640.9 kB, PDF) Pinout Diagrams for CC-305S and CC-505S Cables(88.5 kB, PDF)
Manuals
LDM-4980 Laser Diode Mounts User's Manual(384.9 kB, PDF)
Related Products
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LDT-5416Temperature Controller, Thermoelectric, ±4A, ±4V, 16W, Low Power | In Stock | ||||
 | LDX-3220-120VLaser Diode Driver, Precision, 500mA, 10V, GPIB, 120 VAC | 2 Weeks | ||||
 | LDC-3726Laser Diode Controller, 100/200/500mA, 10V, 32W TEC, USB & GPIB | 3 Weeks |
