Spherical Ball Microlens, 3.0 mm, 1.65 mm FL, 0.15 mm WD, Uncoated

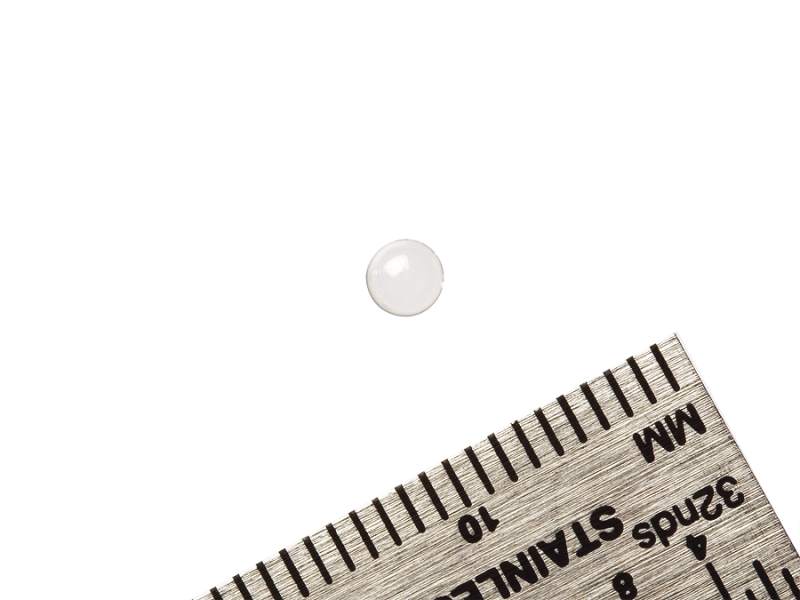

The LB3 Spherical Ball Micro Lens is an uncoated, 3.0 mm diameter, spherical ball lens with a 1.65 mm focal length, a 0.15 mm working distance, and a 2.4 mm clear aperture. Spherical ball lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. Their compact size makes them useful in a variety of applications.

Specifications

Technical Specs

Lens Shape
Sphere
Diameter
3.0 mm
Lens Material
Grade A LaSF N9
Antireflection Coating
Uncoated
Lens Type
Micro Ball Lens
Effective Focal Length (EFL)
1.65 mm
Wavelength Range
600-1550 nm

Working Distance
0.15 mm
Diameter Tolerance
±0.001 mm
f/CA
0.69
Clear Aperture
2.4 mm

Lens Shape
Sphere
Diameter
3.0 mm
Lens Material
Grade A LaSF N9
Antireflection Coating
Uncoated
Lens Type
Micro Ball Lens
Effective Focal Length (EFL)
1.65 mm
Wavelength Range
600-1550 nm

Working Distance
0.15 mm
Diameter Tolerance
±0.001 mm
f/CA
0.69
Clear Aperture
2.4 mm

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

SPHERBAL-S(100.2 kB, PDF)

Other

LB3 RoHS Certificate(263.8 kB, PDF)
LB3_ROHS2-2021.pdf(278.3 kB, PDF)
