Mounted Aspheric Lens, Molded Glass, 7.20 mm, 11.0 mm FL, 350-700 nm

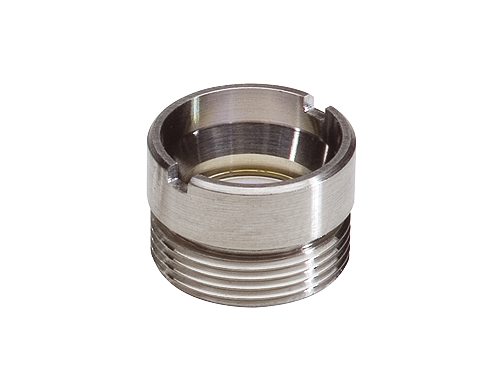

The KGA220-A-MT Geltech Molded Glass Aspheric Lens is a very economic choice for collimating or focusing light at high magnification. It is made from CDGM D-ZK3 glass, which features low dispersion (Vd=61.15). Typical applications include fiber coupling, laser diodes, medical lasers, optical data storage, and barcode scanners. This 7.20 mm diameter lens has an effective focal length of 11.0 mm and a 0.25 NA. It has a Visible anti-reflective coating for 350-700 nm and is mounted in a durable stainless steel housing with a threaded exterior.

Specifications

Technical Specs

Lens Type
Molded Glass Aspheric
Lens Shape
Plano-Convex Aspheric
Diameter
7.2 mm
Antireflection Coating
350-700 nm
Coating Code
-A
Lens Material
D-ZK3
Surface Quality
40-20 scratch-dig
Effective Focal Length (EFL)
11.0 mm
Edge Thickness (T<sub>e</sub>)
0.250 mm

Working Distance
7.91 mm
Design Wavelength
633 nm
Diameter Tolerance
±0.015 mm
Clear Aperture
5.50 mm
Cleaning
See How to Clean Optics
Numerical Aperture
0.25

Lens Type
Molded Glass Aspheric
Lens Shape
Plano-Convex Aspheric
Diameter
7.2 mm
Antireflection Coating
350-700 nm
Coating Code
-A
Lens Material
D-ZK3
Surface Quality
40-20 scratch-dig
Effective Focal Length (EFL)
11.0 mm
Edge Thickness (T<sub>e</sub>)
0.250 mm

Working Distance
7.91 mm
Design Wavelength
633 nm
Diameter Tolerance
±0.015 mm
Clear Aperture
5.50 mm
Cleaning
See How to Clean Optics
Numerical Aperture
0.25

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

KGA-MT9-S(459.7 kB, PDF)

Other

KGA220-A-MT RoHS Certificate(264.1 kB, PDF)
KGA220-A-MT_ROHS2-2021.pdf(278.7 kB, PDF)
