Mounted Aspheric Lens, Molded Glass, 7.20 mm, 6.24 mm FL, 350-700 nm
Mounted Aspheric Lens, Molded Glass, 7.20 mm, 6.24 mm FL, 350-700 nm
Model: KGA110-A-MT
In Stock
Product Series Overview
Mounted Molded Glass Aspheric LensesThe KGA110-A-MT Geltech Molded Glass Aspheric Lens is a very economic choice for collimating or focusing light at high magnification. It is made from CDGM D-ZLaF52LA glass, which features low dispersion (Vd=40.99). Typical applications include fiber coupling, laser diodes, medical lasers, optical data storage, and barcode scanners. This 7.20 mm diameter lens has an effective focal length of 6.24 mm and a 0.40 NA. It has a Visible anti-reflective coating for 350-700 nm and is mounted in a durable stainless steel housing with a threaded exterior.
Resources & Downloads
2D Product Drawings
KGA-MT9-S(459.7 kB, PDF)
Other
KGA110-A-MT RoHS Certificate(264.9 kB, PDF) KGA110-A-MT_ROHS2-2021.pdf(278.8 kB, PDF)
Related Products
Supporting
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

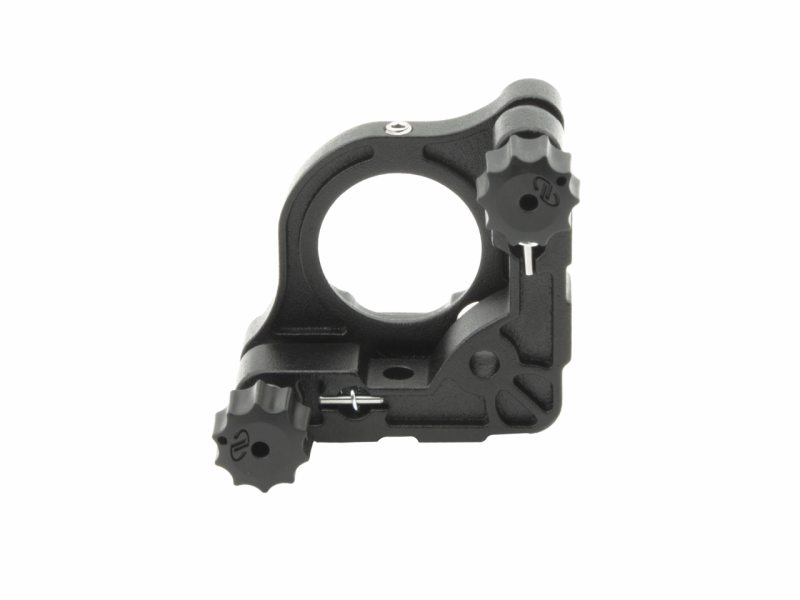

 | M1Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
