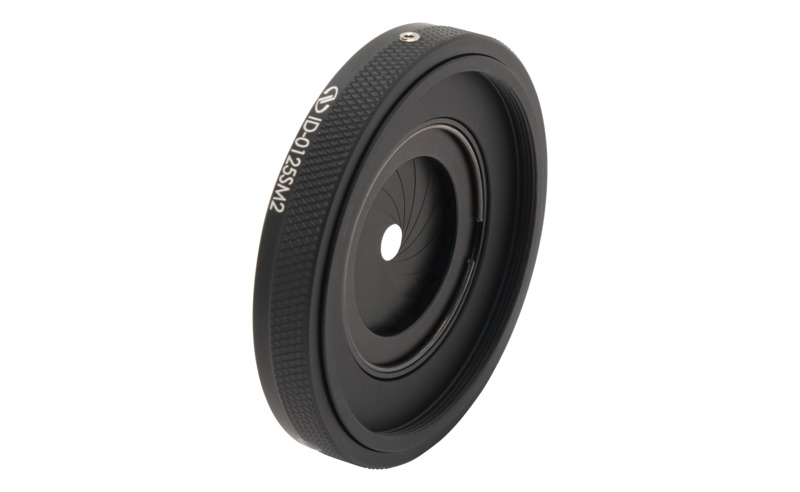

SM2 Threaded Iris Diaphragm, Ring-Actuated, 1-25 mm Aperture Range
SM2 Threaded Iris Diaphragm, Ring-Actuated, 1-25 mm Aperture Range
Model: ID-0125SM2
Product Series Overview

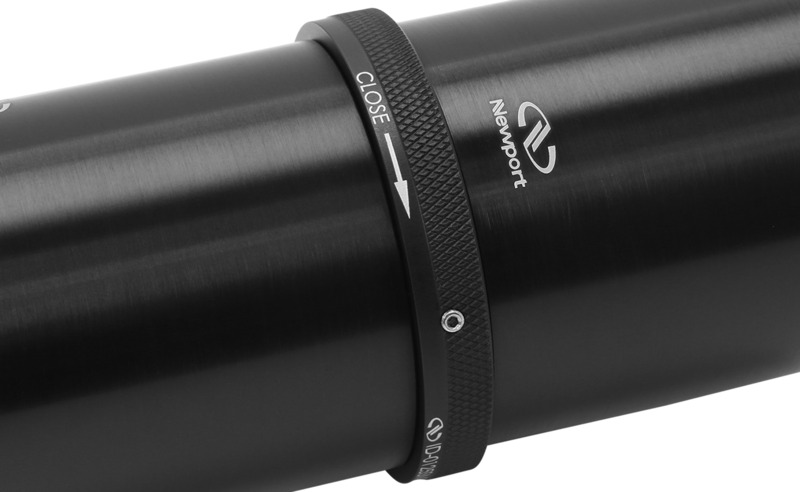

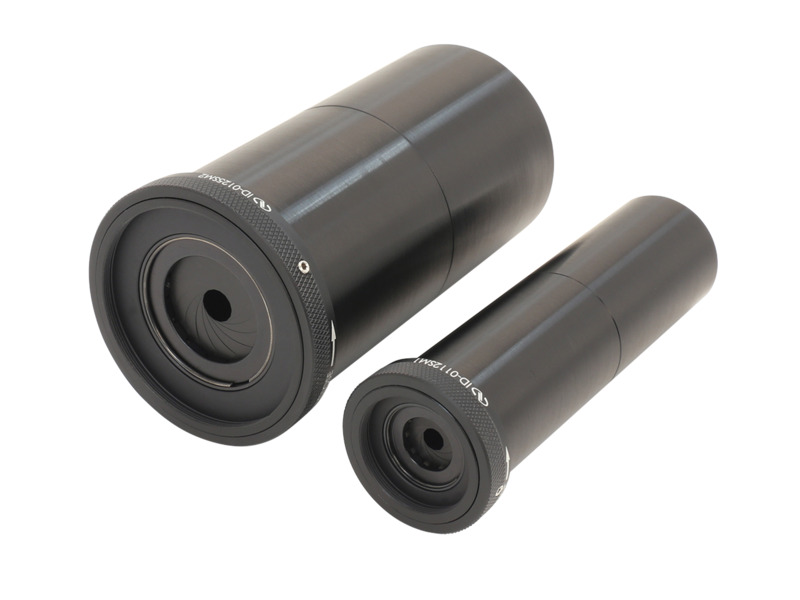

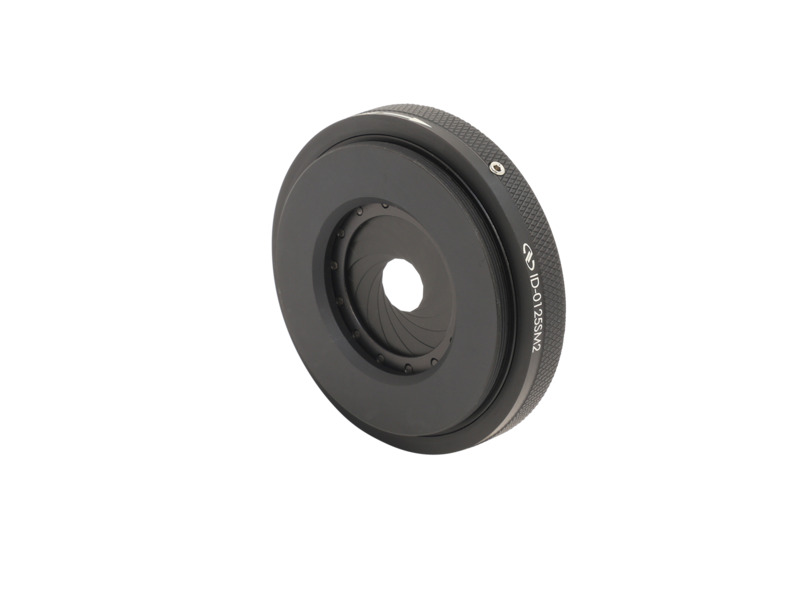

Ring Actuated Threaded Iris DiaphragmsThe ID-0125SM2 iris diaphragm is SM2-threaded for use with opto-mechnical components with 2.035-40 thread. The ring-actuated iris diaphragm is low profile with no lever sticking up that could lead to unintended changes. A setscew on the side of housing can further lock the iris in place after designed opening is achieved.
Resources & Downloads
2D Product Drawings
ID-0125SM2 RING ACTUATED IRIS.pdf(121.4 kB, PDF)
Other
ID-0125SM2_RoHS2021.pdf(685.6 kB, PDF)
