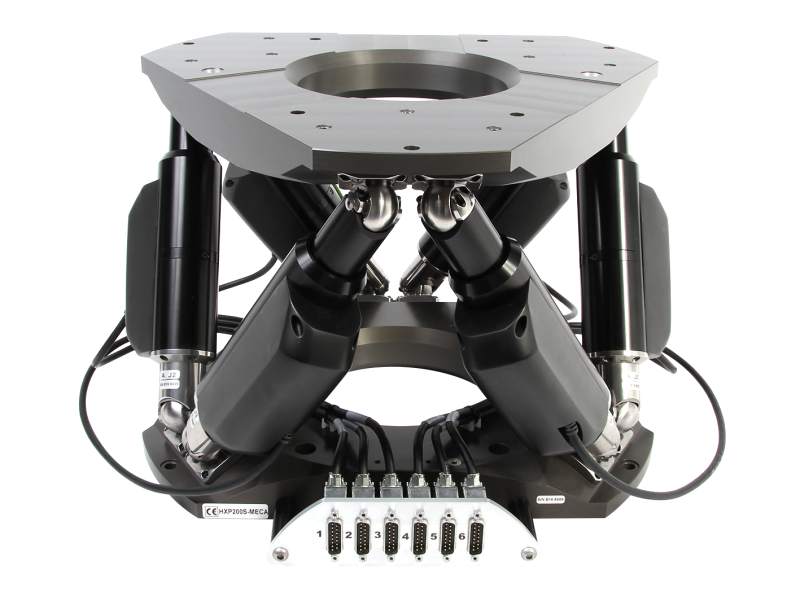

The HXP200S-MECA High Load 6-Axis Hexapod is a parallel kinematic motion device that provides six degrees of freedom: X, Y, Z, pitch, roll, and yaw. The HXP200S is a wider and stiffer version of the HXP200, capable of handling 85 kg, centered and offset loads of at least 11 kg. The HXP200S also features long travel ranges (up to ±59 mm), fast speeds (up to 81 mm/s), high stiffness and stability. The HXP200S is driven by six DC servo motor actuators which provide precise MIM (0.15µm).. A brake on the actuator eliminates drift at power-off conditions. A critical design feature that enhances the overall motion performance is the joints with which the actuators are attached to the base and the moving top plate. The preloaded and backlash-free, cardan joints enhance not only the repeatability and positioning performance of the HXP200S, but are also key to its position stability and stiffness. Determine if the HXP200S-MECA is the right hexapod for your application by using Newport's free HexaViz Simulation Software.
The HXP200S-ELEC-D controller to be purchased separately to drive the HXP200S-MECA.
