Optical Filter Mount, Edge Grip, 2.0 in. Optics, 8-32

Edge Grip Thumbscrew Clamp Filter Mounts

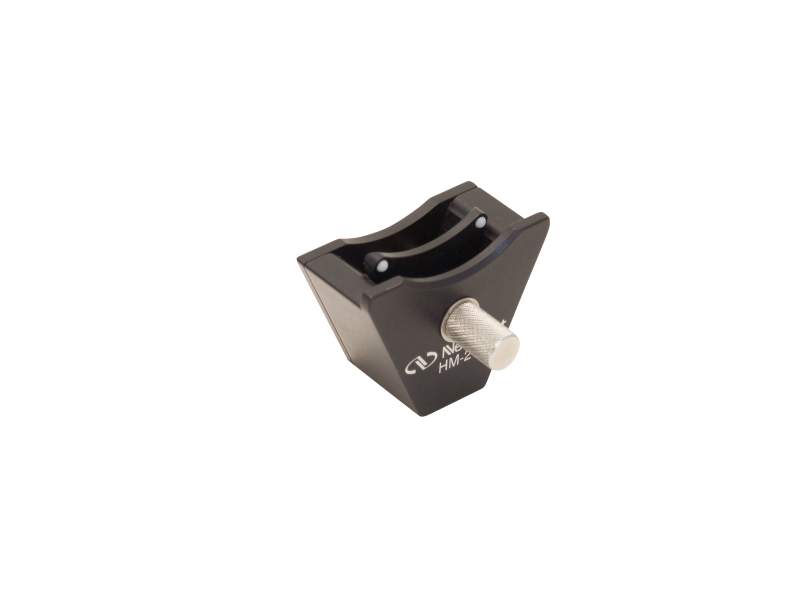

The HM-2 Optic Mount offers a convenient, economical system for mounting 2.0 in. (50.8 mm) round or square filters, beam splitters or mirrors. The mount uses the Edge Grip™ mounting mechanism to hold the optic near its edge. This holding technique allows for easy installation / removal of the optic and makes the mount noticeably smaller in size. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series Posts, as well as PS Series Pedestal Posts.

Specifications

Technical Specs

Filter Shape
Round or Square
Maximum Optic Thickness
13 mm
Minimum Optic Thickness
2.7 mm
Maximum Thickness
13 mm
Number of Filters
1
Mechanism
Thumbscrew Clamp

Mounting Threads
8-32
Material
Anodized Aluminum
Filter Size Circular or Square
50.8 mm

Filter Shape
Round or Square
Maximum Optic Thickness
13 mm
Minimum Optic Thickness
2.7 mm
Maximum Thickness
13 mm
Number of Filters
1
Mechanism
Thumbscrew Clamp

Mounting Threads
8-32
Material
Anodized Aluminum
Filter Size Circular or Square
50.8 mm

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

HM-2-DWG.pdf(1.2 MB, PDF)
