Fiber Optic Measurement Head, -70 to +20dBm, 800-1650nm, InGaAs

Model: FMH-8715

$2,725

In Stock

Compare

Add to List

Product Series Overview

Fiber Optic Sensors for ILX Optical Meters

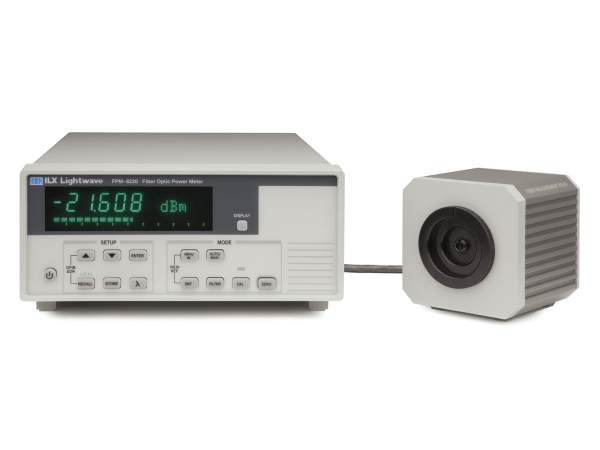

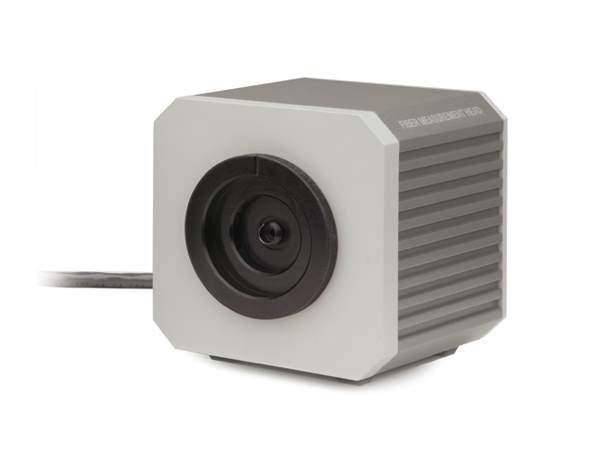

The FMH-8715 Fiber Optic Measurement Head is an integrating sphere based measurement head compatible with the FPM-8220 Fiber Optic Power Meter. The FMH-8715 is designed to measure optical power from -70 dBm to +20 dBm over a wavelength range of 800-1650nm. Interchangeable fiber optic adapters allow the FMH-8715 Fiber Optic Measurement Head to be compatible with a wide range of connectors including FC, SC, LC, bare FC ferrule, and bare fiber. Careful attention to the design allows the FMH-8715 Fiber Optic Measurement Head to achieve a polarization dependent response of less than ±0.006 dB.

Note: FC adapter not included with measurement head.

Optical Meter Required and Sold Separately

Specifications

Technical Specs

Detector Type

InGaAs
Spectral Range

800 - 1650 nm
Use

FPM-8220

Power Range

-70 to +20 dBm (100pW to 100mW)

Detector Type

InGaAs
Spectral Range

800 - 1650 nm
Use

FPM-8220

Power Range

-70 to +20 dBm (100pW to 100mW)

Resources & Downloads

Application Notes

Calibration and Traceability of ILX Lightwave Optical Power Meters - AN36 (538.4 kB, PDF)

Manuals

FPM-8220 Power Meter User's Manual (5.8 MB, PDF)

Technical Notes

Software

FPM-8220 LabVIEW Driver Version 1.0 (327 kB, ZIP)
ILX Lightwave USB Drivers (61.9 MB, ZIP)

Literature

FPM-8220 Fiber Optic Power Meter and FMH Measurement Heads Brochure (1 MB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BF820 Bare Fiber Holder, CA120 or AO120 / AO122 Fiber Adapter Mount	UNIVERSAL	4 Weeks	$475
CA100 FC Fiber Adapter, For FMH Series and OMH-6790B	UNIVERSAL	In Stock	$210
CA120 Bare Fiber Adapter Mount, For FMH Series and OMH-6790B	UNIVERSAL	In Stock	$290
CA150 SC Fiber Adapter, For FMH Series and OMH-6790B	UNIVERSAL	5 Weeks	$305
CA20001 LC Fiber Adapter, For FMH Series and OMH-6790B	UNIVERSAL	In Stock	$265
CA250 Bare Ferrule Adapter, For FMH Series and OMH-6790B	UNIVERSAL	5 Weeks	$315

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		FMH-8705 Fiber Optic Measurement Head, -85 to +1.5dBm, 800-1650nm, InGaAs	UNIVERSAL		In Stock	$1,990
		FMH-87107 Fiber Optic Measurement Head, -60 to +30dBm, 800-1650nm, InGaAs	UNIVERSAL		6 Weeks	$2,785

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		FPM-8220-120V Fiber Optic Power Meter, 120V	UNIVERSAL		Contact Us	$2,935
		FPM-8220-220V Fiber Optic Power Meter, 220V	UNIVERSAL		7 Weeks	$2,935
