Motorized Linear Stage, 200 mm Travel, Integrated Controller, M4 and M6

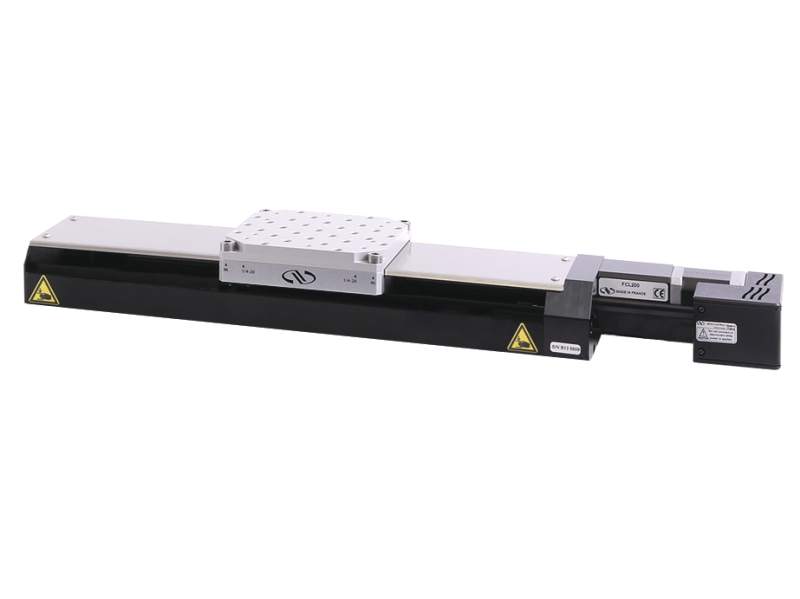

The FCL200 is a Stepper Motor Linear Stage with 200 mm of travel. The FCL series linear stages combine a fully integrated stepper motor controller and mid-range travel linear stage in a small footprint. Similar to the CONEX^™ series for DC motor, the FCL stage comes fully pre-configured and enables true out-of-the box control. The iPP technology used in the FC series completely eliminates controller or driver set up, allowing users to simply connect the USB communication, plug in the power supply and start the included motion GUI. Features of the FCL stages include: FEM optimized aluminum body to avoid thermal expansions, robust construction of recirculating ball bearing for highly accurate linear motion and backlash-free ballscrew drive for rapid movement with short, step and settling time. Up to 4 FCL units can be daisy-chained and controlled with the same GUI.
Cables and power supply sold separately.
