Multimode Fiber, Step Index, 500-2100 nm, 0.22 NA, 365 µm Core, High Power

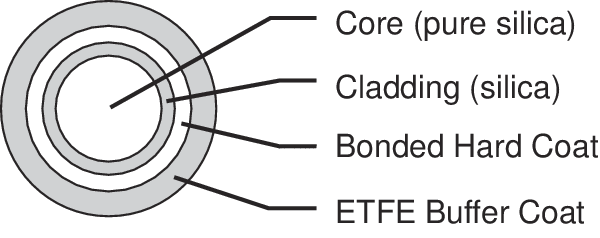

The F-MTC(Mfg. P/N: CF01493-52) High Power Density Fiber has a pure silica 365 μm core and a silica 400 μm cladding, providing an ultra-high damage threshold. In addition, a chemically bonded hard coat adds high strength and increases fatigue resistance. The fiber's low OH- content makes it most suitable for operation in the 500 to 2100 nm wavelength range. It can tolerate peak power density levels nearing 1 GW/cm2 and supports a 25 MHz/km bandwidth. This Step Index fiber has a 0.22 NA.

This bare fiber does not include a protective fiber jacket. Standard pricing is per meter. The following volume discount schedule is applied when ordering continuous lengths of optical fiber: 10 - 49 m: 15%, 50 - 99 m: 22%, 100 - 499 m: 25%, and ≥ 500 m: 28%.
