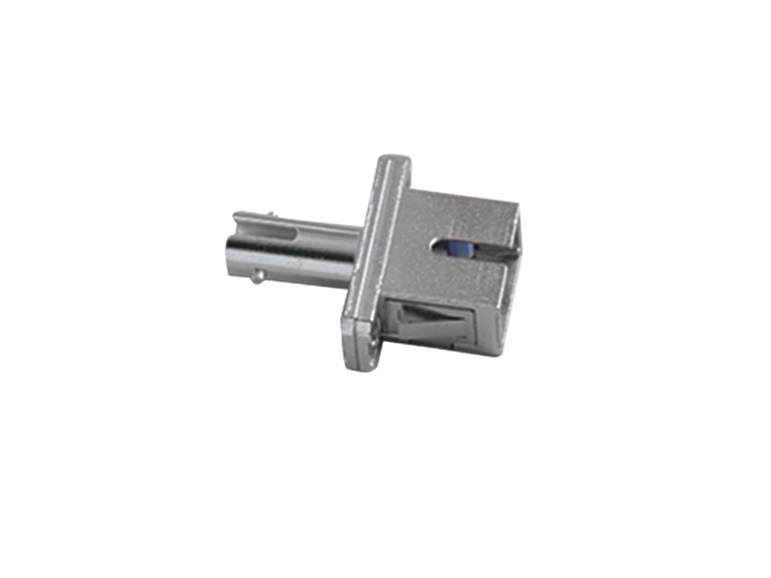

Fiber Optic Mating Adapter, SC Female to ST Female.
Fiber Optic Mating Adapter, SC Female to ST Female.
Model: F-MA-SC-ST
Product Series Overview
Fiber Optic Mating AdaptorsThe F-MA-SC-ST Optical Fiber Mating Adapter/Sleeve is used to connect two connectorized fibers together with low loss. This model has a SC female and ST female connectors on opposite ends. It Can be used for single-mode or multi-mode connectorized fibers
Female to Female Mating Adapters
Each mating adapter is a female-to-female fiber connector. Our standard versions feature like connectors on each side.
Hybrid Mating Adapters
Hybrid mating adapters allow you to connect two fiber optic patch cords with different connector types together.
Singlemode and Multimode Adapter Capabilities
All models can be used for single-mode or multimode connectors, except the SMA, which is multimode only.
Specifications
- TypeMating Adapter
- Fiber ConnectorSC to ST
- Typical Insertion Loss0.1 dB
- Maximum Insertion Loss0.3 dB
- Operating Temperature-40 to +75 °C
