Optical Fiber Coupler, Broadband, 1 x 4, 1310/1550 nm, ±40 nm, FC/APC
Optical Fiber Coupler, Broadband, 1 x 4, 1310/1550 nm, ±40 nm, FC/APC
Model: F-CPL-B14350-FCAPC
In Stock
Product Series Overview

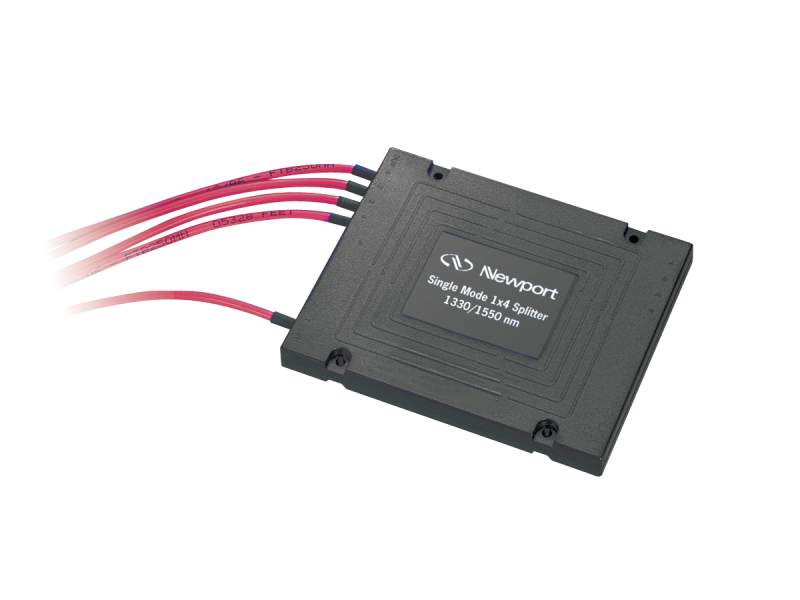

1x4, 1x8 and 1x16 Singlemode Fiber CouplersThe F-CPL-B14350-FCAPC Single Mode Broadband Coupler allows bi-directional coupling and can be used to either split or combine signals with an even ratio. It uses an SMF-28e+ fiber, with low insertion loss and operational over both the 1310 and 1550 nm windows with ±40 nm Bandwidth. This 1x4 coupler features a fully ruggedized black plastic housing with 1 meter long, 3 mm PVC covered pigtails with an FC/APC connector.
Rugged Housing and Cabling with Pigtail, FC/UPC or FC/APC Connections Available
All the couplers feature a fully ruggedized black plastic housing with 1 m long, 3 mm PVC covered pigtails. All standard models come non-terminated, FC/UPC, or FC/APC.
Broadband Fiber Optic Couplers
Our Broadband couplers optimized to work over both the 1310 and 1550 nm windows. This allows users the versatility to use a single device at both wavelengths. These devices come in 1x4 and 1x8 configurations.
Specifications
- Type1x4 Broadband Coupler
- Fiber TypeSinglemode
- Coupling Ratio25:25:25:25
- Fiber ConnectorFC/APC
- Operating Wavelength1310/1550 nm
- Maximum Insertion Loss7.2 dB
- Return Loss≥50 dB
- Bandwidth±40 nm
- Maximum Optical Power2 W
- Option Code57
- Package TypeC
- Operating Humidity90–95%
- Uniformity0.9 dB
- Storage Temperature-40 to 85°C
Resources & Downloads
2D Product Drawings
Fiber pkg -C-S(77.2 kB, PDF)
