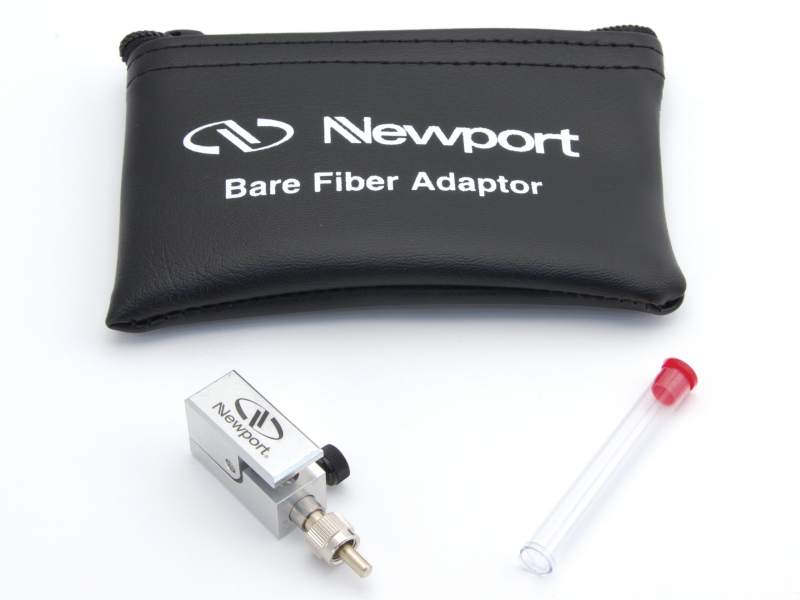

Bare Fiber Adaptor, Multi-mode, SMA Connector

The F-AM-SMA Bare Fiber Adaptor enables quick and easy temporary SMA connections of multi-mode fibers. This adaptor is very useful for connecting fibers to power meters. Optical time-domain reflectometers (OTDRs), and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector.
The bare fiber is secured in place with a special precision cut foam pad to ensure kink free, diffusion free operation and repeatable measurements. Fibers with buffer sizes of up to 900 μm can be accommodated. Piano wires for cleaning blocked ferrules are included with all adaptors.

Connect Fibers Quickly to Important Equipment

These adapters are very useful for connecting fibers to power meters, optical time-domain reflectometers (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector.

Great Precision Up to 900 µm Fiber

Bare fiber is secured in place with a special precision cut foam pad to ensure kink- and diffusion-free operation and repeatable measurements. Fibers with buffer sizes of up to 900 µm can be accommodated.

Single-mode and Multimode Adapter Kits

Also available are kits that contain a single adapter body, FC, SC and ST interchangeable connector tips, a universal mating sleeve for quick ferrule-to-ferrule connections and a fiber stop to ensure that bare cleaved fibers are flush with the front of the connector ferrule. Piano wires for cleaning blocked ferrules are also included with all adapters.

Specifications

Technical Specs

Type
Bare Fiber Adapter
Fiber Connector
SMA
Fiber Type
Multi-mode

Cladding Diameter
125 µm

Type
Bare Fiber Adapter
Fiber Connector
SMA
Fiber Type
Multi-mode

Cladding Diameter
125 µm
