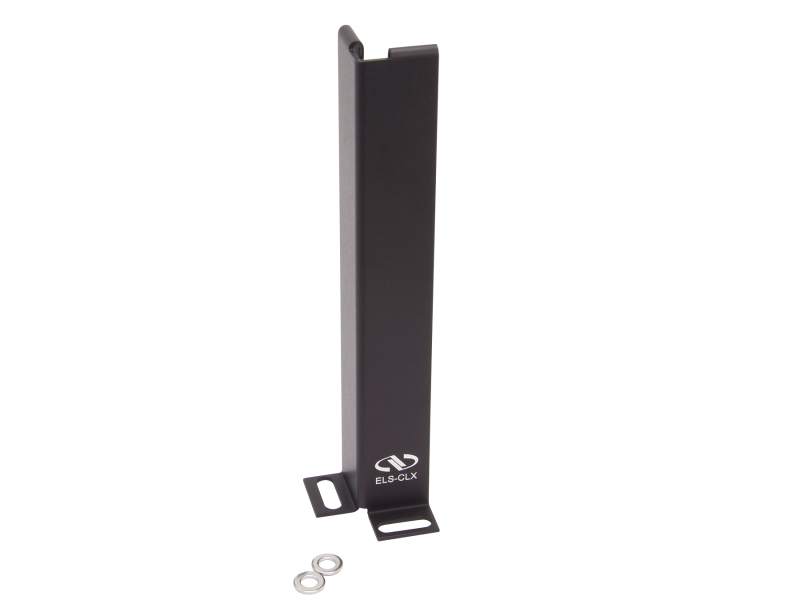

Light Shield System, Connector, External Corner, 12 in. Height
Light Shield System, Connector, External Corner, 12 in. Height
Model: ELM-CLX
In Stock
Product Series Overview
Perimeter Light ShieldsThe ELM-CLX corner connector is used to build a light-blocking enclosure. This item is used to connect two 12-inch-tall ELM Light Shield Plates in a right-angle corner. The mounting slots are located on the exterior of the corner. Create what you need for your setup assured the pieces are made to work together.
Resources & Downloads
2D Product Drawings
ELM-CLX.PDF(20.7 kB, PDF)
Other
ELM-CLX_RoHS2021.pdf(683.2 kB, PDF)
