Optical Delay Line Kit, Single Pass, 9848 Retroreflector, metric
Optical Delay Line Kit, Single Pass, 9848 Retroreflector, metric
Model: DL-BKIT19-M
Product Series Overview

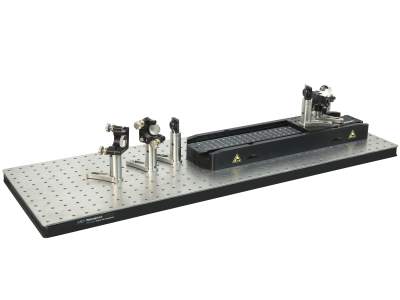

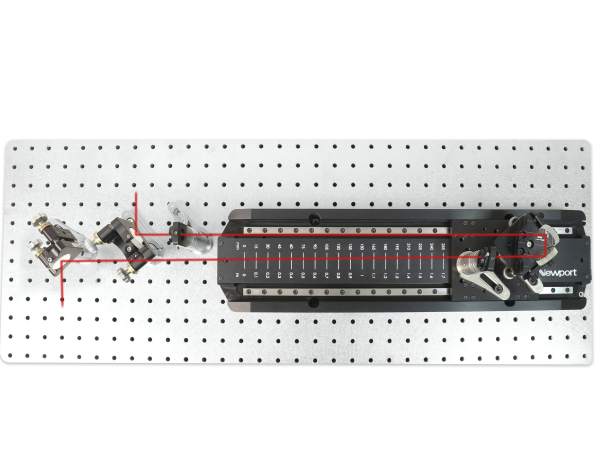

Optical Delay Line Components KitsThe DL-BKIT19-M optical delay line kit is configured as a single pass design ultizing the New Focus 9848-KT retroreflector assembly with Newport's 10D620ER.2 silver mirrors mounted in ULTIMA® clear edge mirror mounts. To insure maximum compatibility to Newport's motion stages, all mechanical parts in this kit are metric compatible. All screws, clamps, posts, post extensions for mounting are also included in the kit. Please purchase the motion stage and controller separately.
DL-BKIT19-M Single Pass Kit Contents
This is a single pass delay line kit for visible wavelengths featuring the model
All pertinent metric screws required for assembly will be included in the kit.
| Part No | Description | Qty in Kit |
| Silver Mirror 1 in. Diameter | 4 | |
| Ultima Clear Edge Mirror Mount | 2 | |
| Optical Delay Mirror Mount | 1 | |
| Iris Diaphragm 0.5" Dia | 2 | |
| Steel Optical Pedestal, M4 | 1 | |
| Magnetic Pedestal, M4 | 3 | |
| Fixed Position Lens Mount | 2 | |
| Optical Pedestal Spacer, M4 | 2 | |
| Slotted Clamping Fork | 4 | |
| Thread Adaptor, M6 to M4 | 1 |
Resources & Downloads
Literature
DL-BKIT19-M Instruction Sheet(135.6 kB, PDF)
