CONEX-PSD10GE Optical Beam Position Detector

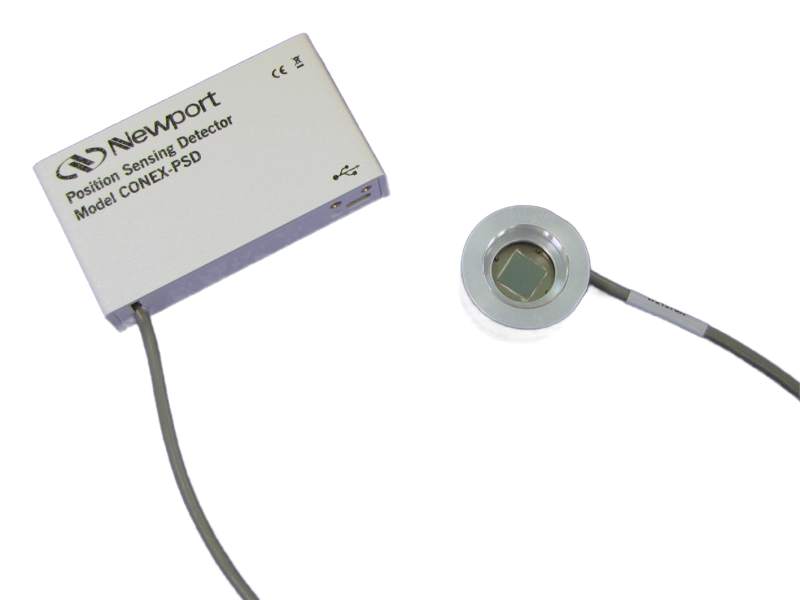

The CONEX-PSD10GE Position Sensing Detector provides accurate XY position information of laser beams and is ideally suited for laser beam stabilization, laser tracking and general beam diagnostics. Unlike quadrant detectors, the improved tetra-lateral effect diode of the CONEX-PSD10GE is highly linear over the full sensor size of 10 mm x 10 mm, and delivers a third signal proportional to the beam power.

Different than many detectors that are tweaked for high bandwidth, the CONEX-PSD10GE has been optimized for stability and compatibility with pulsed laser beams. An analog input filter with 136 Hz cut-off frequency suppresses high frequency noise and undesired signal ringing when used with pulsed lasers. An additional digital low pass filter can be set by software in a frequency range from 0 Hz to 1000 Hz to further improve signal homogeneity.

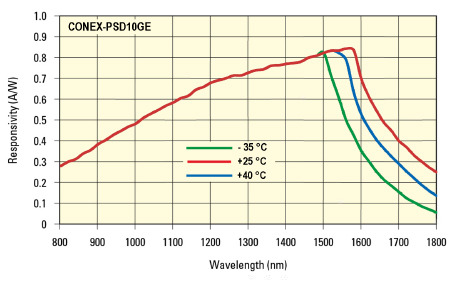

CONEX-PSD10GE Responsivity for 800-1700 nm

CONEX-PSD10GE Max % Returned by GP Command for 1mW Beam

Simple Control Software

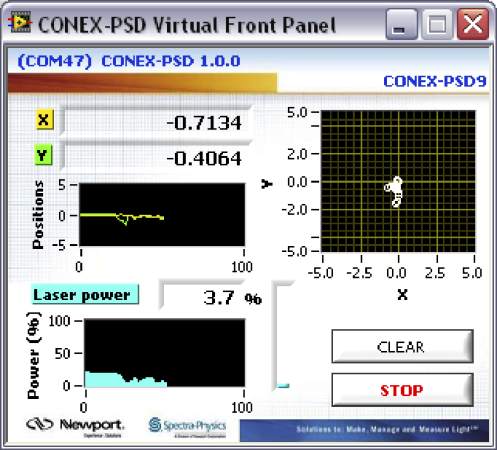

All CONEX modules provide easy, plug-and-play, USB PC control. Multiple units can be connected to a single USB port using standard USB hub technology. CONEX-PSD modules are powered through the USB port and includes an intuitive software. The CONEX module is fully supported for software development with LabVIEW™.

Works With Pulsed Lasers

Compared to many detectors that are tweaked for high bandwidth, the CONEX-PSD has been optimized for stability and compatibility with pulsed laser beams. An analog input filter with 319 Hz cut-off frequency suppresses high frequency noise and undesired signal ringing when used with pulsed lasers. An additional digital low pass filter can be set by software in a frequency range from 0 Hz to 1000 Hz to further improve signal homogeneity.

Mounting Additional Optics

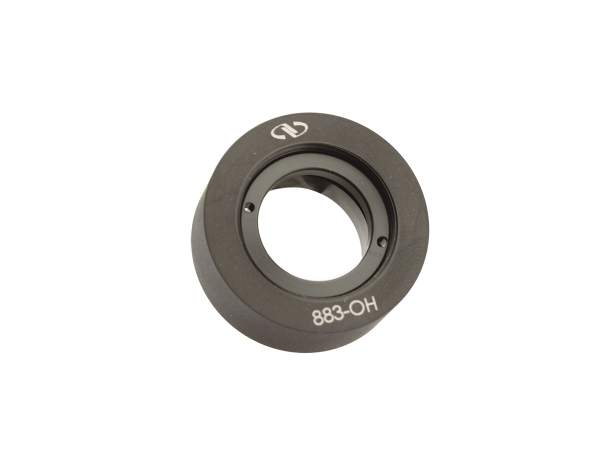

The 883-OH adapter/optic holder allows mounting additional optics in front of the detector for stray light reduction or beam attenuation.

Specifications

Technical Specs

Wavelength Range

800-1700 nm
Sensor Size

10 x 10 mm
Resolution

12 bit
Power Input Range

Between 0.1 mW and 1 mW
Sensitivity

5 µm at maximum power and with 20 Hz digital filter
Power Requirements

Powered through USB interface

Responsivity

0.85 A/W @ 1500 nm
Detector Material

Germanium
Computer Interface

USB
Dimensions

93.2 x 53 x 23 mm (controller), 38.1 mm diameter x 22.9 mm (sensor head)

Wavelength Range

800-1700 nm
Sensor Size

10 x 10 mm
Resolution

12 bit
Power Input Range

Between 0.1 mW and 1 mW
Sensitivity

5 µm at maximum power and with 20 Hz digital filter
Power Requirements

Powered through USB interface

Responsivity

0.85 A/W @ 1500 nm
Detector Material

Germanium
Computer Interface

USB
Dimensions

93.2 x 53 x 23 mm (controller), 38.1 mm diameter x 22.9 mm (sensor head)

Optical Beam Position Detector, 10x10 mm Sensor, 800-1700 nm
