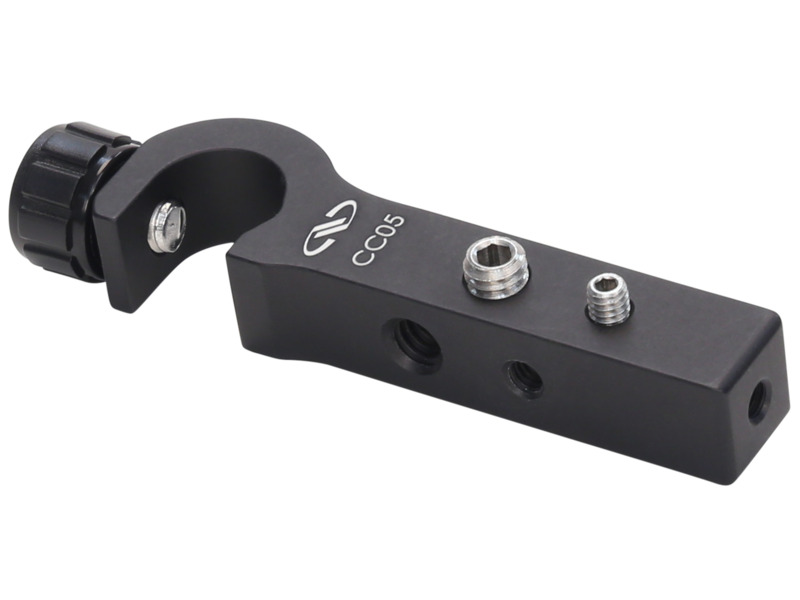

Component Clamp, 0.5 in. Posts, 1/4-20 and 8-32 Threaded Holes
Component Clamp, 0.5 in. Posts, 1/4-20 and 8-32 Threaded Holes
Model: CC05
Product Series Overview
Post Clamps for Mirror MountThe CC05 can be used to secure prisms, mirror mounts and other devices. The clamp mount attaches to a Ø1/2 inch optical posts and has both 1/4-20 and 8-32 threaded holes along its length and at end. These can used as through holes for set screws or threaded holes for mirror mounts or other optical components.
Side Attach an Optical Mount
The CC05 can be used to attach an optical mount to the side of a 0.5 inch optical post. The feature is useful when your set-up does not allow for an optical post and post holder to be located below the optical mounts position.
Prism or Cube Mounting
The CC05 mounting joist can be used with a platform mount to clamp an optical prism or cube beamsplitter.
Specifications
- Thread Type8-32 and 1/4-20
- Inside Diameter0.5 inch.
- MaterialAnodized Aluminum
