Calcium Fluoride Plano-Convex Lens, 12.7 mm, 25.4 mm FL, 180-8000 nm
Calcium Fluoride Plano-Convex Lens, 12.7 mm, 25.4 mm FL, 180-8000 nm
Model: CAPX10
In Stock
Product Series Overview

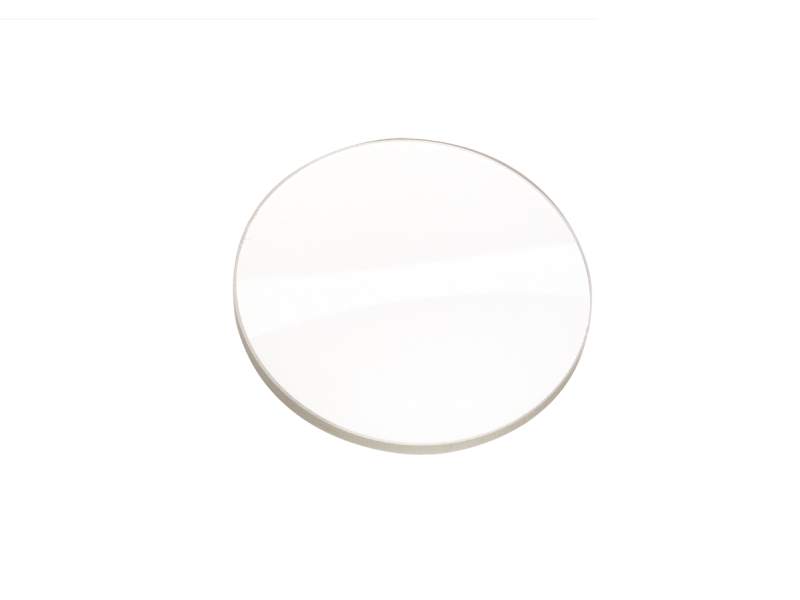

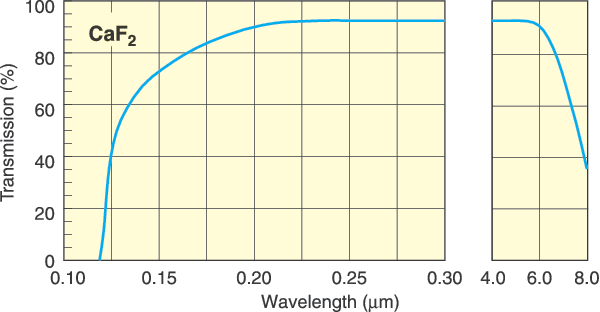

Calcium Fluoride Plano-Convex IR LensesThe CAPX10 is a Plano-Convex Infrared Lens, made of CaF2 material. It has a diameter of 12.7 mm, and an effective focal length of 25.4 mm. Calcium Fluoride lenses are an excellent choice of material for making lenses for UV to NIR wavelengths (180 nm - 8 μm). It has high average transmission and low chromatic aberration compared to various IR materials. In NIR regime, CaF2 exhibits very low GVD which makes it suitable for applications using femtosecond IR pulses.
Specifications
- Lens ShapePlano-Convex
- Diameter12.7 mm
- Lens MaterialCaF2
- Antireflection CoatingUncoated
- Surface Quality40-20 scratch-dig
- λ/4 at 633 nm
- F/#2
- 25.4 mm
- 10.622
- 0.89 mm
- 3.0 mm
- Design Wavelength2.94 µm
- Centration≤3 arc min
- Diameter Tolerance+0/-0.12 mm
- Center Thickness Tolerance±0.12 mm
- Clear Aperture≥central 90% of diameter
