Blackbody Infrared Light Source
Blackbody Infrared Light Source
Model: BLACKBODY-IR
Product Series Overview

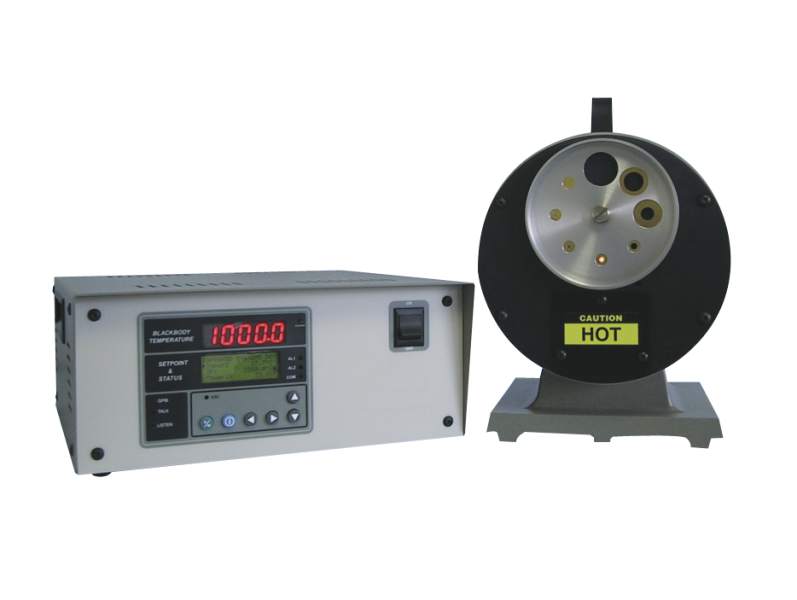

Blackbody IR Light SourcesThe BLACKBODY-IR source is a highly uniform, temperature stable source of infrared radiation. These sources emit blackbody radiation by multiple reflection, absorption and re-emission of the thermal energy. There are four available configurations of black body sources, based upon the past Newport model number options (a unique model number will be created upon quote request):
- 205SI000146 (Formerly Newport Model #67030) - 50 - 1050°C, 1" Aperture, 110 VAC
- 205SI000173 (Formerly Newport Model #67031) - 50 - 1050°C, 1" Aperture, 220 VAC
- 205SI000147 (Formerly Newport Model #67032) - 50 - 1200°C, 1" Aperture, 110 VAC
- 205SI000159 (Formerly Newport Model #67033) - 50 - 1200°C, 1" Aperture, 220 VAC
- 205SI000172 (Formerly Newport Model #67035) - 50 - 1050°C, 0.4" Aperture, 220 VAC
Specifications
- Lamp Type50 - 1050°C Blackbody
50 - 1200°C Blackbody - Spectral Range0.5 - 99.0 um
- Calibration±0.2°C ±1 digit
- Cavity Opening25.4 mm (1 inch)
- Resolution1°C or 0.1°C, selectable
- Stability±0.02% of full scale per 24-hour period
- Cavity Temperature Range50 to 1050°C
50 to 1200°C - Cavity TypeRecessed 20° cone
- Warm-up Time35 minutes
- Power Requirements110VAC or 220 VAC
