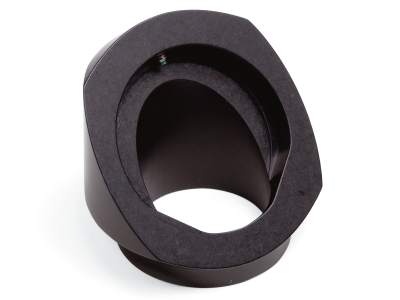

45 Degree Mirror Holder, 50.8 mm Diameter
The 9924 45-degree Mirror Adapter is ideal for beam splitting, periscopes, and general beam-steering applications with 2 in. mirrors. When the 45° adapter is used in a periscope, the beam stays centered on the mirror, simplifying alignment.
Resources & Downloads
Other
907126_RoHS2021.pdf(690.4 kB, PDF)
2D Product Drawings
9924rc_rev1a(482.4 kB, PDF)
