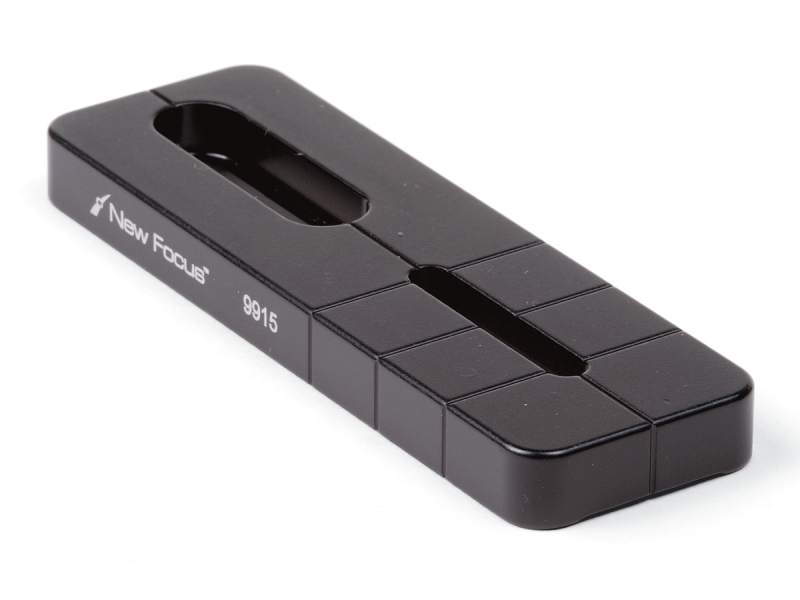

Baseplate, 1.25 in. Width, 1/4-20 (M6) and 8-32 (M4) Counterbored Slots

Aluminum Slotted Bases

The 9915 Baseplate makes it easy to reach a mounting hole on a conventional optical table that has a 1.25 in. or 31.8 mm mounting-hole array.

Specifications

Technical Specs

Type
Slotted Base
Length
98.7 mm
Width
31.8 mm
Height
9.1 mm

Thread Type
8-32 (M4) and 1/4-20 (M6) CLR
Material
Aluminum

Type
Slotted Base
Length
98.7 mm
Width
31.8 mm
Height
9.1 mm

Thread Type
8-32 (M4) and 1/4-20 (M6) CLR
Material
Aluminum

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9915_RC_a(468.1 kB, PDF)

Other

907128_RoHS2021.pdf(688.3 kB, PDF)
