Double Filter Holder, Recessed Spring Clip, Round or Square

Drop-in Spring Clamp Filter Holders

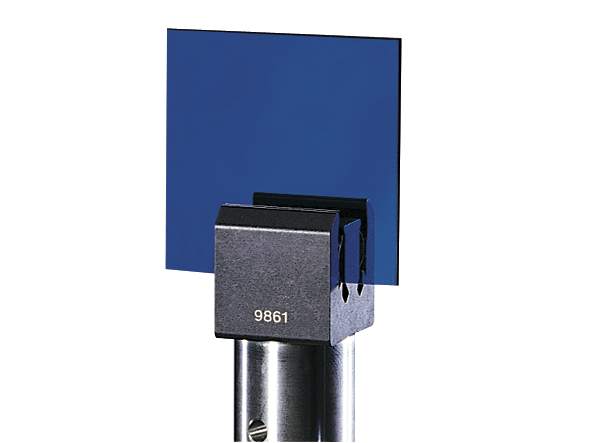

The 9861 Double Filter Holder clever has a recessed spring clip that tightly grips a filter of any thickness from 0.5 mm to 3 mm with no need for additional locking. No more loose filters or chipped edges. Use this holder for either square or round filters, as well as those assorted filter pieces you have in your lab.

Specifications

Technical Specs

Filter Shape
Round or Square
Filter Diameter
12.7 - 50.8 mm
Maximum Thickness
3 mm
Number of Filters
2
Mechanism
Recessed Spring Clip

Mounting Threads
8-32 (M4) Thru
Material
Anodized Aluminum
Filter Size Circular or Square
12.7 - 50.8 mm

Filter Shape
Round or Square
Filter Diameter
12.7 - 50.8 mm
Maximum Thickness
3 mm
Number of Filters
2
Mechanism
Recessed Spring Clip

Mounting Threads
8-32 (M4) Thru
Material
Anodized Aluminum
Filter Size Circular or Square
12.7 - 50.8 mm

Resources & Downloads

2D Product Drawings

99-9861(93.4 kB, PDF)
9861b-Drawing(84.8 kB, PDF)
