Mirror Mount, Stability, Center, 1.0 in., 3 Knobs

New Focus Low Wavefront Distortion Mirror Mounts

Model: 9816-6

$264

Compare

Product Series Overview

New Focus Low Wavefront Distortion Mirror Mounts

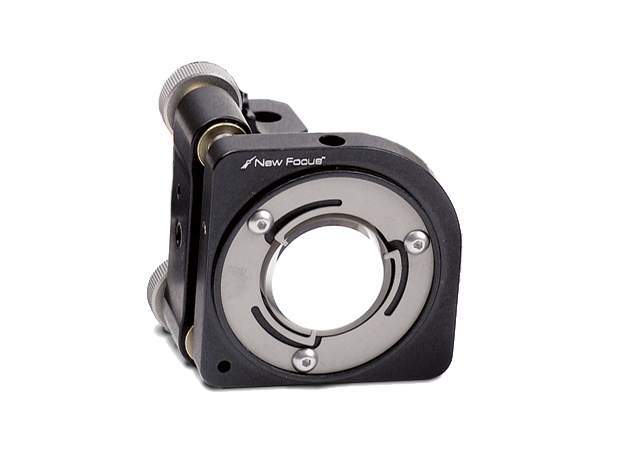

The 9816-6 Stability Series Center Mirror Mount builds upon the New Focus™ tradition of manufacturing outstanding kinematic mounts that use the best knob actuated adjustment screws and sapphire seats. This Black Anodized 1.0 inch (25.4 mm) diameter mount has a unique retention system for 6.35 mm thick mirrors that provides further performance enhancements. Designed originally for precision UV beamsteering applications in the demanding UV semiconductor capital-equipment industry, the retention system optimizes stability while minimizing wavefront distortion, ensuring that the mirrors are truly flat and rock solid. Mirror installation and removal is simple and fast, requiring no adhesives.

Specifications

Technical Specs

Type
Precision
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°
Actuator Orientation
Left-handed

Optic Loading
Front
Material
Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Thickness
6.35 mm
Optic Mounting
Low Wavefront Distortion
Special Features
Low-Stress Mounting
Weight
129 g

Type
Precision
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°
Actuator Orientation
Left-handed

Optic Loading
Front
Material
Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Thickness
6.35 mm
Optic Mounting
Low Wavefront Distortion
Special Features
Low-Stress Mounting
Weight
129 g

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9816a-Drawing(256.4 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price

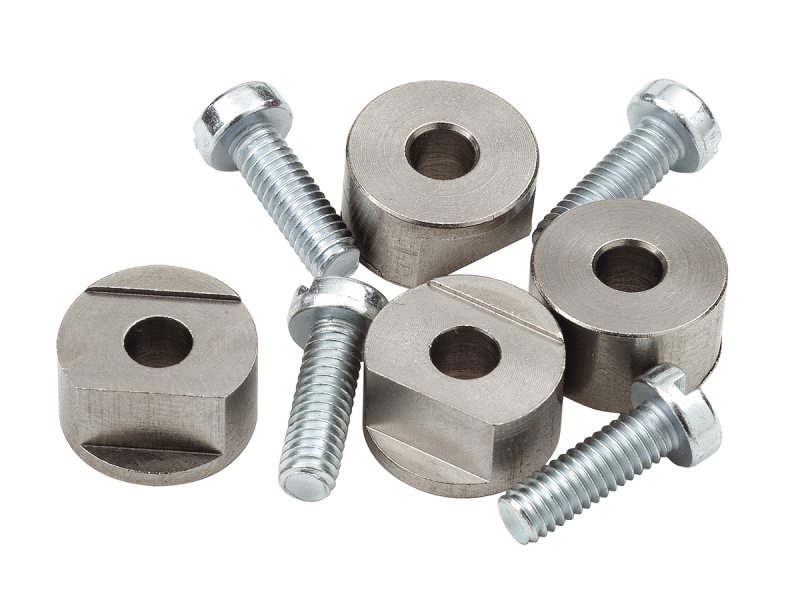

BR42Mounting Bridle, UTR80S to MVN80, TGN80 or UMR8, 0.22 in. Height, Qty 4	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$59
9947Clamping Fork, Small Pedestal, Captive 1/4-20 Screw	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$32
BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
SK-ASocket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	In Stock	$135

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

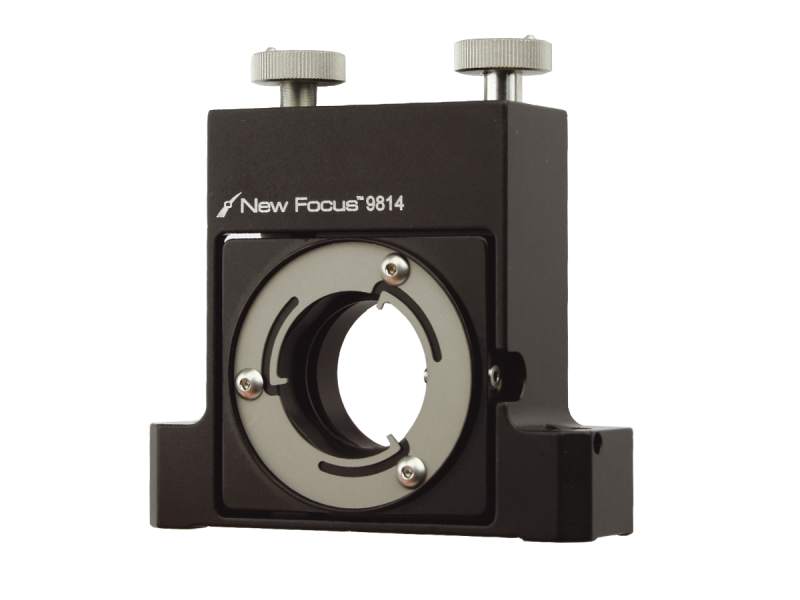

		9814-8Mirror Mount, Stability, Top Adjust, 1.0 in., Thick, 2 Knobs	UNIVERSAL		Contact Us	$515

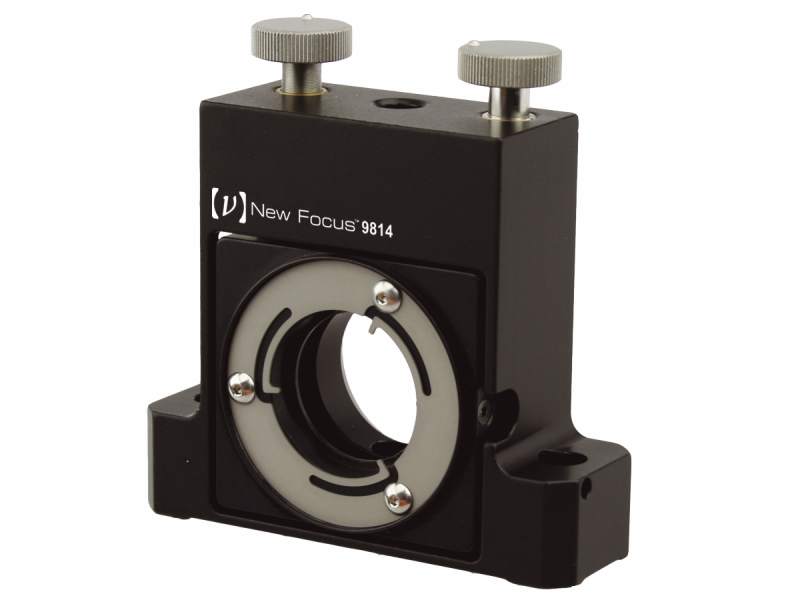

		9814-6Mirror Mount, Stability, Top Adjust, 1.0 in., 2 Knobs	UNIVERSAL		2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$515
