Mirror Mount, Classic, Corner, 0.5 in., 3 Knobs

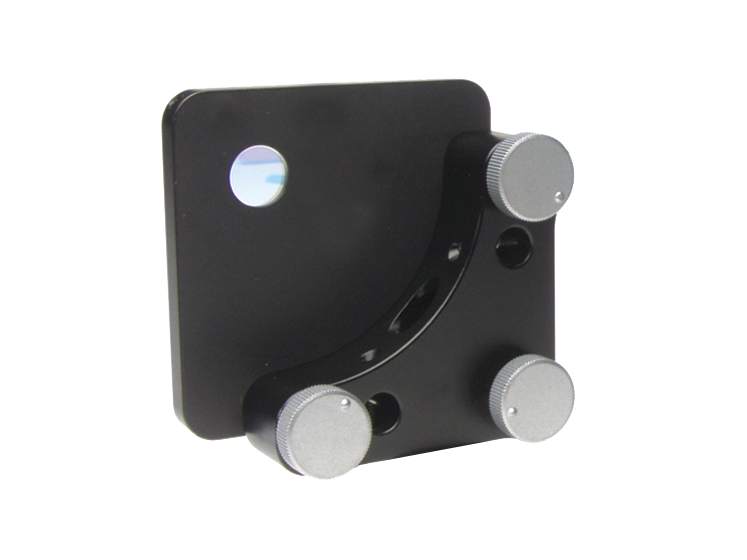

The 9808 Classic Corner Mirror Mount centers a 0.5 inch (12.7 mm) diameter optic at the fourth corner of the square formed with the three adjustment screws, allowing you to get tilt without translation, and pure translation all in a single mount. For pure translation, simply turn all knobs the same amount. A 1° error in one knob results in only 0.0012° tilt in the face plate. For tilt without translation, use two knobs, or for applications when translation is less important, adjust the tilt with just one knob. The proprietary, precision, knob actuated 1/4-80 screws give you increased durability, better repeatability, and even more precise adjustment than comparably priced mounts. Because the optic sits close to the edge of this mount, it is ideal for applications where clearance is an issue.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
12.7 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
50.8 mm
Weight
173 g

Mechanism
Kinematic
Optic Diameter
12.7 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
50.8 mm
Weight
173 g

Resources & Downloads

2D Product Drawings

9808c-Drawing(86 kB, PDF)
