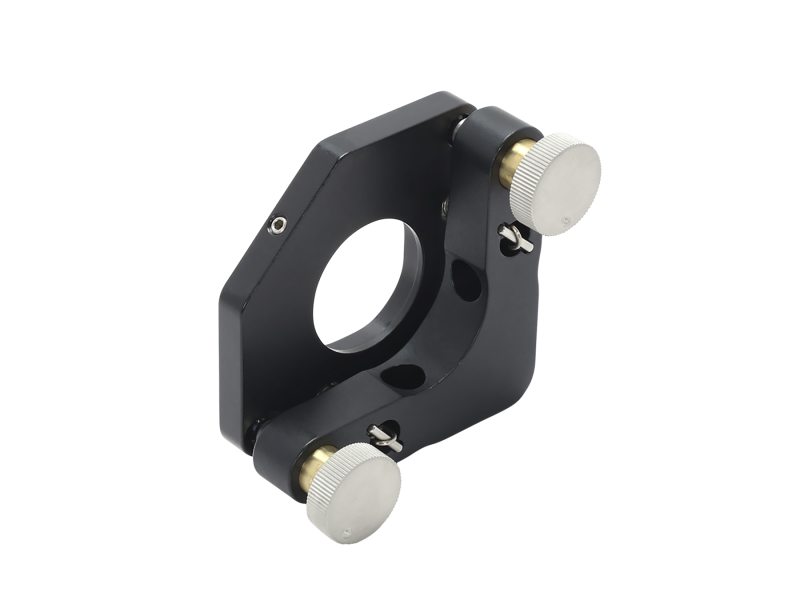

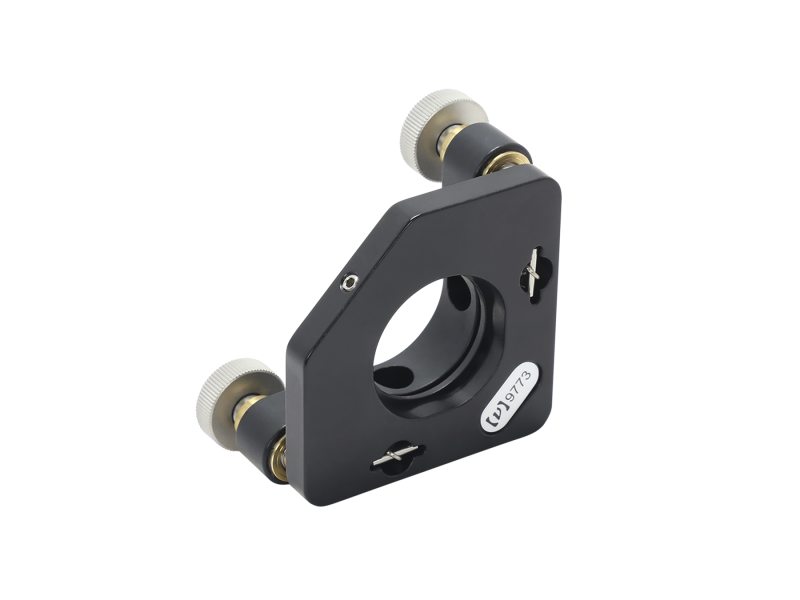

Mirror Mount, Valu, Center, 1.0 in., 2 Knobs

The 9773 Valu Center Mirror Mount achieves a high level of stability by using a 0.5 inch frame that is stiffer than any you'll find on other comparably priced 1.0 in. (25.4 mm) diameter mounts. Two knob adjustment screws give you ±4° for tip and tilt adjustments using the same high-quality proprietary screws, brass nuts, and hard sapphire seats found in all New Focus® mounts.

Specifications

Technical Specs

Type
Standard
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Actuator Orientation
Left-handed
Optic Loading
Front
Material
Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Weight
87 g

Type
Standard
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Actuator Orientation
Left-handed
Optic Loading
Front
Material
Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Weight
87 g
