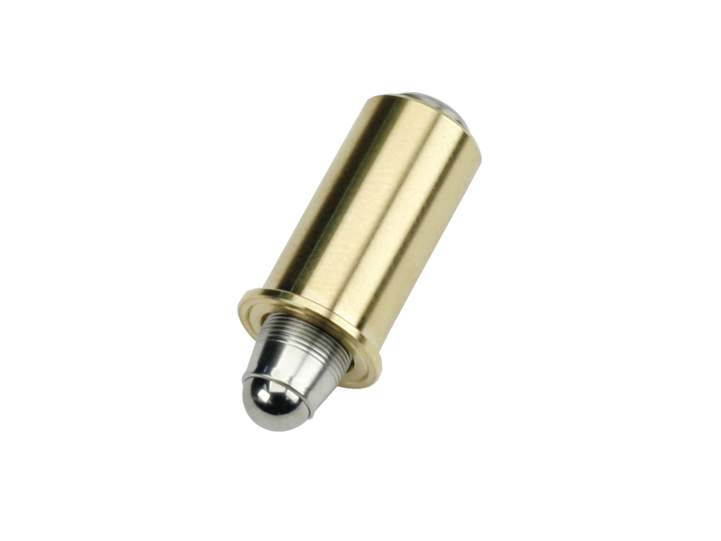

Adjustment Screw, Hex, Unbraked, 9.6 mm Travel, Ball Tip, 1/4-100

Specifications

  • Travel Range
    9.6 mm
  • Adjustment Screw Thread
    1/4-100
  • Drive Type
    Hex
  • Axial Load Capacity
    90 N
  • Lock
    No Lock
  • Tip Style
    Ball
  • Sensitivity
    0.71 µm
