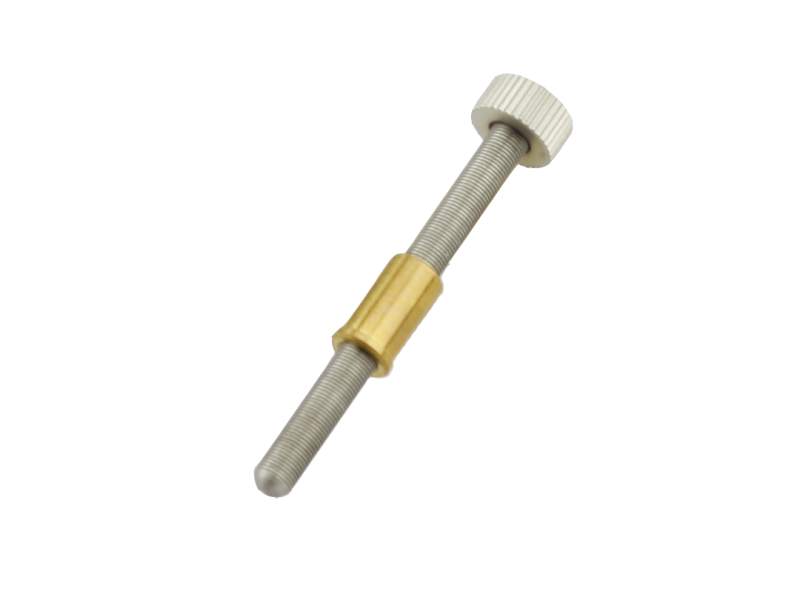

Adjustment Screw, Tiny Knob, 28.7 mm Travel, Ball Tip, 6-80

The 9347 Tiny Adjustment Screw is perfect if you need to build miniature mounts or positioners. We use these same screw sets in our pint-sized mounts, so you know you're getting the best quality. This ball tip adjustment screw has 80 threads per inch and 28.7 mm of travel with knob adjustment. Built with the same proprietary process as our 1/4-80 screw sets, these screws feature tight tolerances and no excess grease, resulting in actuators with very smooth movement, high precision, and exceptional long-term and thermal stability.

Specifications

Technical Specs

Travel Range
28.7 mm
Adjustment Screw Thread
6-80
Drive Type
Knob
Axial Load Capacity
35 N
Lock
No Lock

Tip Style
Ball
Sensitivity
0.88 µm
Weight
7 g

Travel Range
28.7 mm
Adjustment Screw Thread
6-80
Drive Type
Knob
Axial Load Capacity
35 N
Lock
No Lock

Tip Style
Ball
Sensitivity
0.88 µm
Weight
7 g

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

934x_937x(463.2 kB, PDF)

Other

902341-13 RoHS Certificate(291.5 kB, PDF)
RoHs-2021 Certificate 9347(410.4 kB, PDF)
REACH Supplier Statement - 934x Tiny Adjuster.pdf(553.8 kB, PDF)
