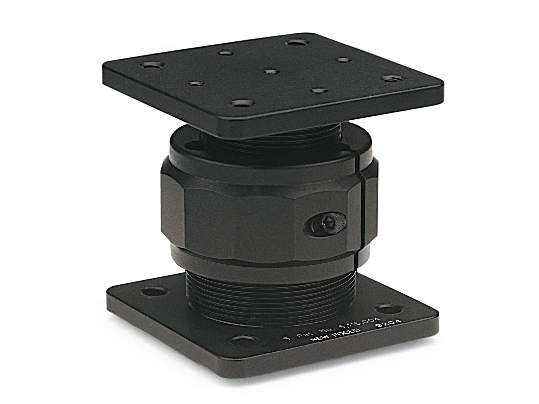

Variable Height Platform, 2 in. Travel, 3 x 3 in. Platform, 220 N Load, M4 and M6
The 9204-M Big Lab Jack gives you a variable-height platform from 2.0 to 4.0 in. with 0.002 in. resolution. Each revolution of the knob corresponds to 0.25 in. of vertical travel. It locks solidly and can support up to 50 pounds. For easy mounting, the big jack accommodates both M4 and M6 screws.
Specifications
- Travel Range50.8 mm
- Load Capacity220 N
- Thread TypeM4 and M6
- Minimum Height50.8 mm
- Maximum Height101.6 mm
- Platform Size76.2 x 76.2 mm
- Axes of TravelZ
- Resolution0.05 mm
