Baseplate, 9067 Series Stages, 8-32

Translation Stage Base Plates, 906x Series

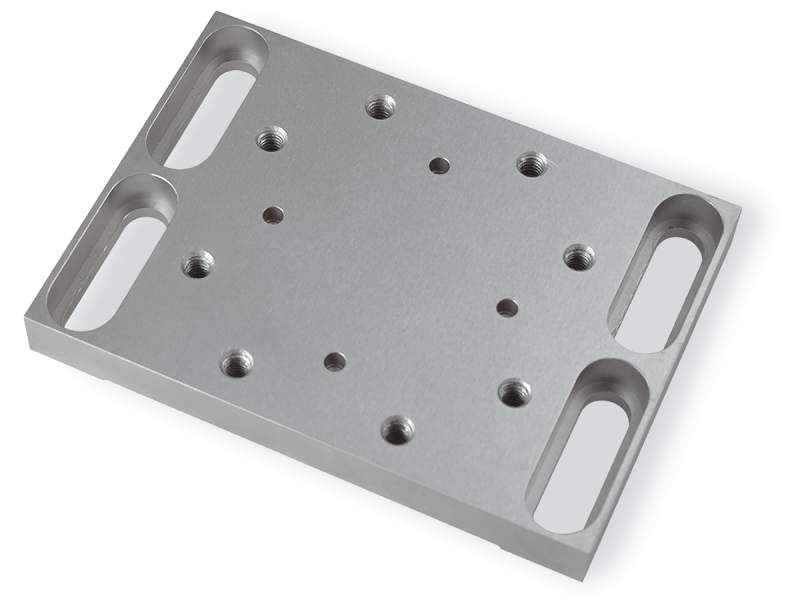

The 9160 Baseplate is used with the Model 9067 series of crossed-roller-bearing stages to create a stage with conventional mounting slots. 8-32 thru holes

Specifications

Technical Specs

Type
Base Plate
Height
9.5 mm
Length
88.9 mm
Width
63.5 mm
Thread Type
8-32

Material
Stainless Steel
Use
9067 Series Stage

Type
Base Plate
Height
9.5 mm
Length
88.9 mm
Width
63.5 mm
Thread Type
8-32

Material
Stainless Steel
Use
9067 Series Stage

Resources & Downloads

2D Product Drawings

9160RC_2005(225.5 kB, PDF)

Other

910103_RoHS2021.pdf(690 kB, PDF)
