High-Energy Pinhole, Molybdenum, 5 µm, 0.875-20 Thread

0.875-20 Threaded High Energy Molybdenum Pinholes

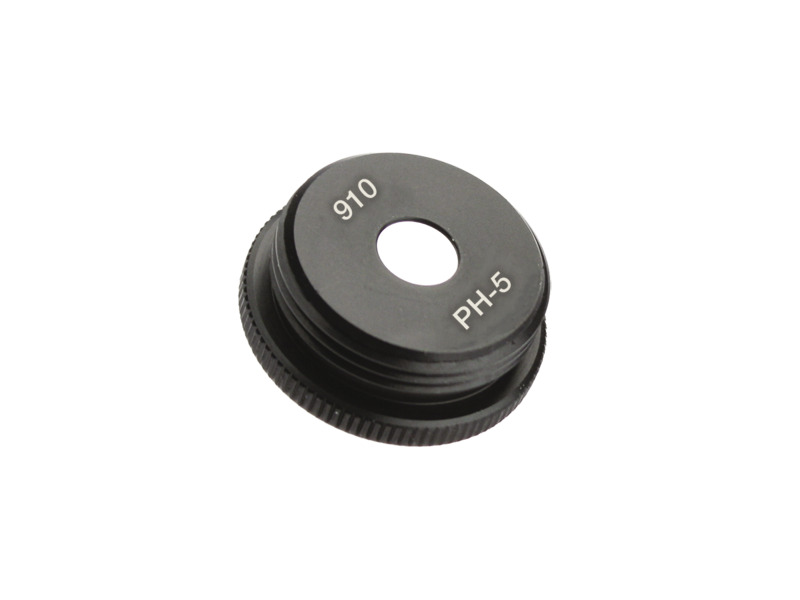

The 910PH-5 High Energy Pinhole Aperture is fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth 5 ± 0.75 μm diameter hole with extremely low ellipticity is produced using laser drilling techniques. These pinholes have a laser damage threshold of 75 MW/cm2 CW and are suitable for pulsed laser use up to 700 mJ/cm2. Each pinhole comes mounted into a black anodized aluminum body which is threaded (0.875-20) to be used with either the 910 Five-axis Spatial Filter or one of the LP-05A Multi-axis Lens Mounts.

Specifications

Technical Specs

Type
High Energy Pinhole
Thread Type
0.875-20
Aperture Diameter
5 µm
Aperture Diameter Tolerance
±0.75 µm
Material
Molybdenum
Diameter
9.525 mm

Diameter Tolerance
±0.125 mm
Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
15.24 µm
Use
910A Spatial Filter and LP-05A Positioner

Type
High Energy Pinhole
Thread Type
0.875-20
Aperture Diameter
5 µm
Aperture Diameter Tolerance
±0.75 µm
Material
Molybdenum
Diameter
9.525 mm

Diameter Tolerance
±0.125 mm
Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
15.24 µm
Use
910A Spatial Filter and LP-05A Positioner
