Five-Axis Fiber Launcher, Flexure Design, Bare

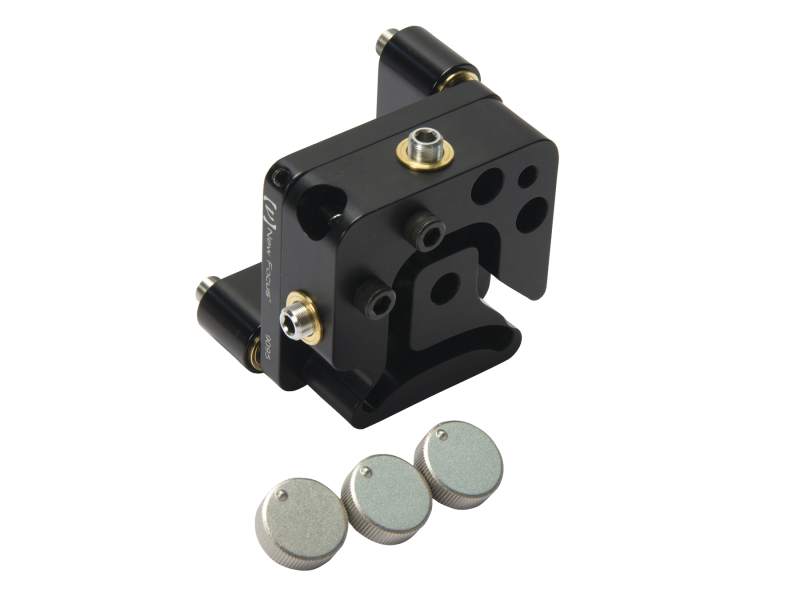

The 9095 Optical Fiber Launcher combines our Model 9051 XY fiber positioner with a modified Model 9807 mirror mount, resulting in an inexpensive five-axis multimode-fiber launcher with 4.4-μm resolution. The mirror mount contributes tilt and Z translation to the X-Y motion of the flexure mount, resulting in a total of five degrees of freedom.

Specifications

Technical Specs

Axes of Travel
X, Y, Z, θx, θy
Fiber Type
Multimode
Travel Range
3 mm
Optical Axis Height
25.4 mm
Angular Range
8 ° - θ_x, θ_y

Sensitivity
X,Y: 0.88 µm
Z: 0.88 µm
θx,θy: 4.4 arcsec
Thread Type
8-32 (M4) CLR
Weight
183 g

Axes of Travel
X, Y, Z, θx, θy
Fiber Type
Multimode
Travel Range
3 mm
Optical Axis Height
25.4 mm
Angular Range
8 ° - θ_x, θ_y

Sensitivity
X,Y: 0.88 µm
Z: 0.88 µm
θx,θy: 4.4 arcsec
Thread Type
8-32 (M4) CLR
Weight
183 g
