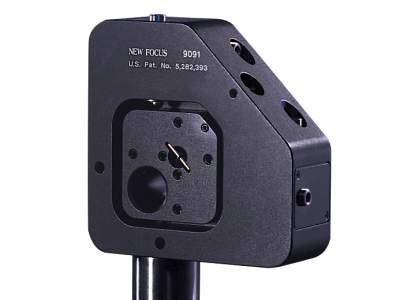

Optical Fiber Positioner, XYZθXθY, Singlemode, 8-32
The 9091 Single-mode Fiber Positioner is for single-mode fiber applications. Our five-axis fiber positioner has all motions independently and firmly connected to a single base. This configuration gives you incredible 0.02 μm resolution coupled with unparalleled stability. Convenient mounting holes allow you to attach various accessories for maximum flexibility. An 8-32 threaded mounting hole allows placement on any post or pedestal in your lab.
Resources & Downloads
Manuals
9091 Fiber Aligner User Manual(418.3 kB, PDF)
2D Product Drawings
9091e-Drawing(167.2 kB, PDF)
