XYZ Linear Stage, Triple Divide, 12.7 mm, YZ Pico, X Micro, M4, M6

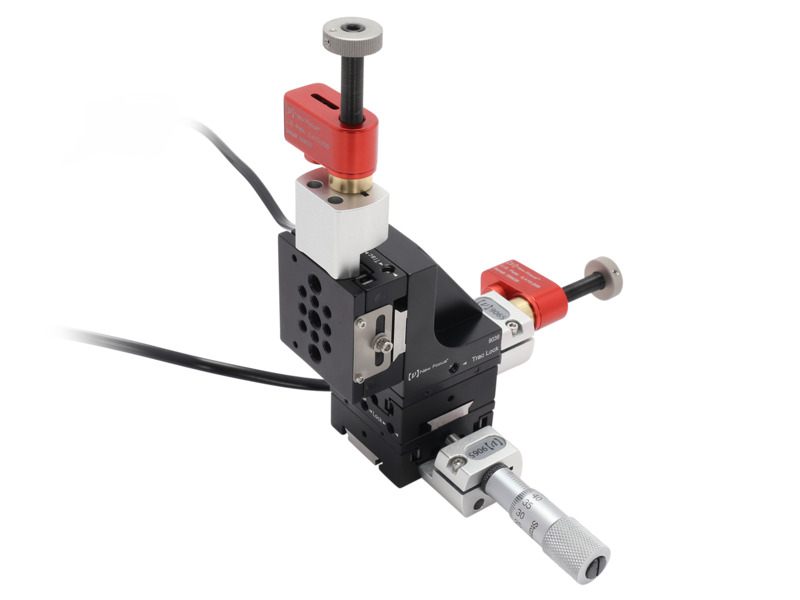

The 9065-XYZ-NPP-M Motorized Triple Divide Translation Stage incorporates our Picomotor™ actuators in the Y and Z axes and a micrometer in the X axis of our Triple Divide™ translation stage to meet your 12.7 mm XYZ travel laboratory applications. All necessary clamps, brackets, and baseplates are included so that the stage can be used right out of the box. Some assembly is required. The Triple Divide translation stage system is based on the unique e⋅z⋅Trac™ rail system and delivers the stability of an integrated stage but is effortlessly adaptable and easy to use. Because of its modularity, these stages are extremely economical. M4 and M6 mounting threads.
Specifications
- Travel Range12.7 mm
- Axes of TravelXYZ
- Motorized AxesY, Z
- Micrometer AxesX
- Included ActuatorsPicomotor:
Micrometer: 9352 - Maximum Speed0.02 mm/s
- Minimum Incremental Motion<30 nm (Picomotor)
- Resolution0.5 µm (Micrometer)
- Centered Load Capacity53 N
- Vertical Load Capacity22 N
- BearingsBall Bearings
- MaterialAluminum
- FeedbackOpen Loop
- Cable Length2.1 m
- Connector Type4-Pin
- Thread TypeM4 and M6
- Platform Size39.4 x 39.4 mm
- Operating Temperature10 to 40°C
Resources & Downloads
Literature
Picomotor FAQ(3.1 MB, PDF)
