Picomotor Actuator, Rotating, Ultra-High Vacuum

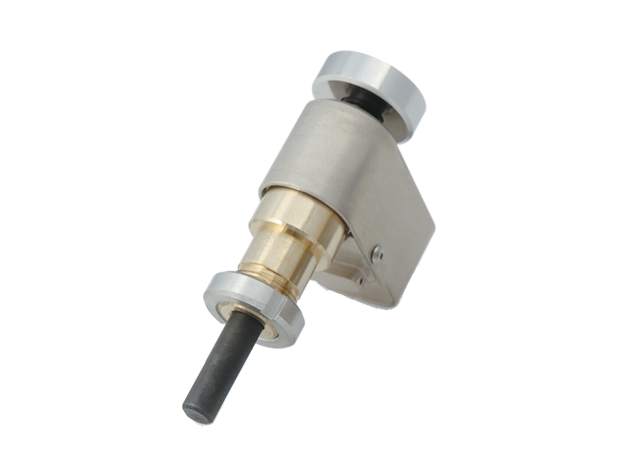

The 8341-UHV Ultra-High Vacuum Rotating Picomotor Actuator is for those vacuum applications (10-9 Torr) requiring rotation without translation. This 0.0187 in. (4.76-mm) rotating shaft is ideal for rotating small optical components or mechanical devices from remote locations. The 0.375 in. (9.5-mm) diameter shank lets you mount the Model 8341-UHV just like our other actuators. A convenient flat on the end of the shaft allow solid coupling to external components. Note: the lifetime of the rotating shaft is 15,000 cycles.
Specifications
- Travel Range360°
- Maximum Speed3-4 RPM
- Mounting9.5 mm Shank
- Frequency2 kHz
- EnvironmentUltra High Vacuum
- Vacuum Compatibility10-9 Torr
- Vacuum Wire MaterialKapton
- Cable Length2.1 m
- Connector Type4-pin RJ-22 (non-vacuum-rated)
- Operating Temperature10-40
C
Resources & Downloads
3D Product Models
Literature
UHV Picomotors(1.6 MB, PDF) Picomotor FAQ(3.1 MB, PDF) DS-012305 8341V-UHV Datasheet(991 kB, PDF)
Technical Notes
Open vs Closed Loop Picomotors(1.6 MB, PDF)
2D Product Drawings
8341-UHV dwg(543.9 kB, PDF)
