819M-PFR-1.0-1.5BV2 Port Frame Reducer, 1.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
819M-PFR-1.0-1.5BV2 Port Frame Reducer, 1.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
Model: 7Z08361N
4 Weeks
Product Series Overview

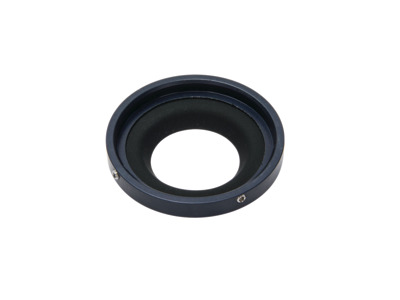

Port Frame Size Adapters for Integrating SpheresThe 819M-PFR-1.0-1.5BV2 (P/N 7Z08361N) Flat Black Port Frame Reducer mounts onto the 1.5 inches port frame to change the port frame to 1 inch diameter. This allows accessories designed for smaller port sizes to be used with larger port frames. Coated with flat black. Mount with two M3 size set screws using a 1.5 mm allen wrench, which are included with the part.
Resources & Downloads
Literature
DS-111501 Intergrating Sphere Acces-2.pdf(1.2 MB, PDF)
