819M-B-11-1.0 C-Mount Adapter, Male, 1.0 in. Port, 819C and 819D Spheres
819M-B-11-1.0 C-Mount Adapter, Male, 1.0 in. Port, 819C and 819D Spheres
Model: 7Z08288N
In Stock
Product Series Overview

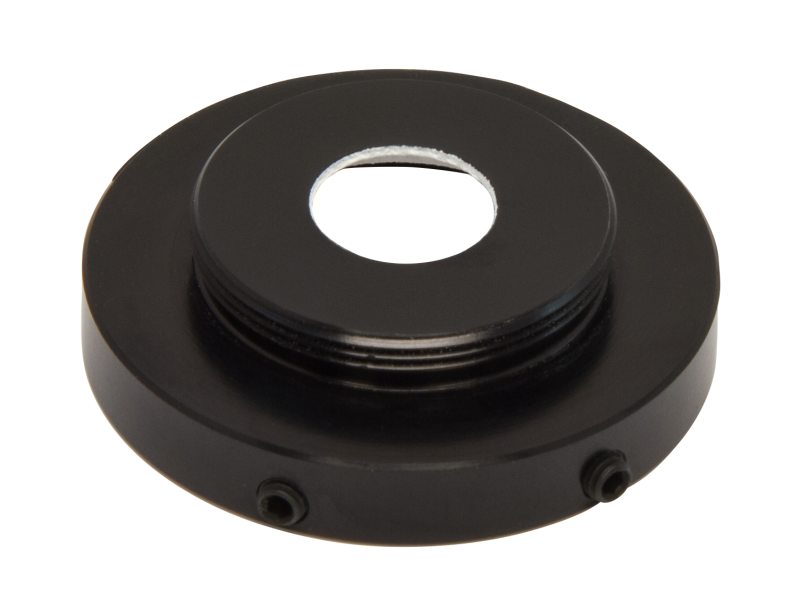

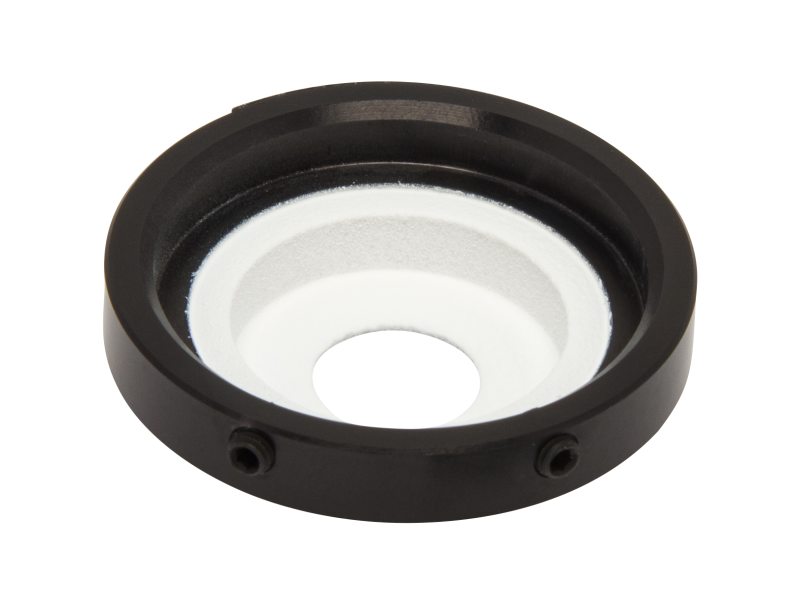

Sensor Adapters for Integrating SpheresThe 819M-B-11-1.0 (P/N 7Z08288N)i s a C-mount (1-32 UN 2A) male adpater. The 11 mm clear aperture limits the field of the view of the device, increasing the measurement accuracy and uniformity. The barium sulfate coating inside the adapter helps minimize the throughput loss. For a female C-mount thread, use 819M-CM-1.0 (P/N 7Z08290N) instead.
Resources & Downloads
Literature
DS-111501 Intergrating Sphere Acces-2.pdf(1.2 MB, PDF)
2D Product Drawings
7Z08288N-819M-B-11-1.0_Dimensional_Drawing.pdf(103.7 kB, PDF)
