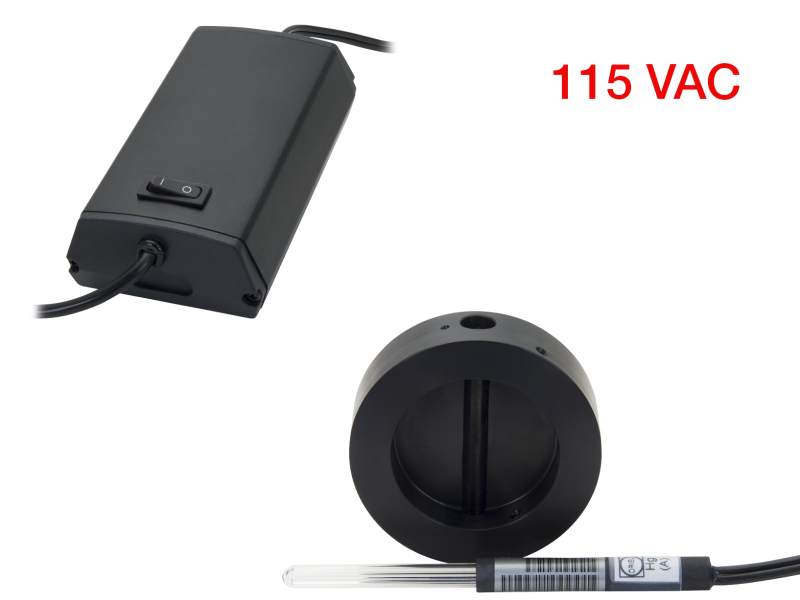

HgAr Calibration Set, 115 VAC

Model: 78822

$850

5 Weeks

Compare

Add to List

Product Series Overview

Pencil Style Calibration Lamps

The calibration of a spectroscopy system involves the use of a light source with known spectral lines. The 78822 HgAr Calibration Set provides everything needed to get started right away. Additional line lamps may be ordered and interchanged as needed. All Oriel pencil style calibration lamps fit into the holder, which connects securely to the input of all Oriel monochromators and spectrographs. Light leakage is minimal, so it is less hazardous to use than an open lamp mount.

Due to its intense UV spectral output profile below 400 nm, Oriel recommends wearing the necessary safety equipment such as UV protective eyewear. Safety goggles or spectacles are offered separately.

Specifications

Technical Specs

Lamp Type

Hg(Ar)
Power Requirements

110-120 VAC, 60 Hz

Lamp Current

18 ±5 mA

Lamp Type

Hg(Ar)
Power Requirements

110-120 VAC, 60 Hz

Lamp Current

18 ±5 mA

Related Products

Spare Parts

Description	Compatibility	Avail.	Price
6035 Spectral Calibration Lamp, Hg (Ar), 18±5 mA, 5000 Hour Rated Life	UNIVERSAL	In Stock	$255
6047 Power Supply, Lamp, AC, Hg(Ar) or Hg(Ne), 18 mA, 115 VAC, 60 Hz	UNIVERSAL	Show	$440
78819 Spectral Calibration Lamp Mount, 1.5-Inch Series Flange	UNIVERSAL	In Stock	$230

UV Safety Equipment

Description	Compatibility	Avail.	Price
49121 Ultraviolet Protective Gloves, Size 10, Black Neoprene, Set of 3	UNIVERSAL	In Stock	$75
49123 UV Protective Gloves, Size 8, Black Neoprene, Set of 3	UNIVERSAL	In Stock	$75
49126 Safety Goggles, UV Light Sources, Flexible Frame	UNIVERSAL	In Stock	$80

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		78812 HgAr Calibration Set, 230 VAC	UNIVERSAL		5 Weeks	$850

Compatible

Description	Compatibility	Avail.	Price
6032 Spectral Calibration Lamp, Neon, 10 ±4 mA, 250 Hour Rated Life	UNIVERSAL	In Stock	$335
6030 Spectral Calibration Lamp, Argon, 10 mA, 500 Hour Rated Life	UNIVERSAL	In Stock	$285
6033 Spectral Calibration Lamp, Xenon, 6 ±3 mA, 250 Hour Rated Life	UNIVERSAL	In Stock	$345
6034 Spectral Calibration Lamp, Hg (Ne), 18, ±5 mA, 500 Hour Rated Life	UNIVERSAL	Contact Us	$325
6031 Spectral Calibration Lamp, Krypton, 10 ±4 mA, 1000 Hour Rated Life	UNIVERSAL	In Stock	$285
